SDR9R, SDR9P 9.0 AMP STANDARD RECOVERY RECTIFIER

SDR9R Description

Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.

SDR9R Features

* PIV to 1500 Volts
* Hermetically Sealed
* Low Reverse Leakage Current
* Single Chip Construction
* Replaces Larger DO-4 Rectifiers
* Low Thermal Resistance
* Available in Axial & Square Tab Versions
* TX, TXV, and S-Level Screening A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDR9R, SDR9P. Please refer to the document for exact specifications by model.

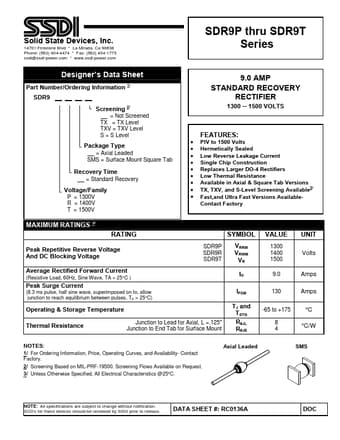

datasheet Preview Page 2

Datasheet Details

Part number
SDR9R, SDR9P
Manufacturer
SSDI
File Size
64.98 KB
Datasheet
SDR9P-SSDI.pdf
Description
9.0 AMP STANDARD RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SDR9R, SDR9P.
Please refer to the document for exact specifications by model.
