SED15HE60 - (SED15HB60 / SED15HE60) SCHOTTKY RECTIFIER

Product Overview

SSDI

📥 Download Datasheet

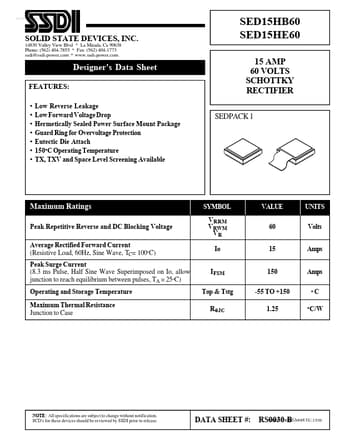

SED15HE60 (SED15HB60 / SED15HE60) SCHOTTKY RECTIFIER by SSDI - Datasheet Preview — Datasheet preview – SED15HE60

Datasheet Details

Part number	SED15HE60
Manufacturer	SSDI
File Size	248.30 KB
Description	(SED15HB60 / SED15HE60) SCHOTTKY RECTIFIER
Datasheet	SED15HE60 Datasheet
Note	This datasheet PDF includes multiple part numbers: SED15HE60, SED15HB60. Please refer to the document for exact specifications by model.
Additional preview pages of the SED15HE60 datasheet.

Product details

Features

Low Reverse Leakage Low Forward Voltage Drop Hermetically Sealed Power Surface Mount Package Guard Ring for Overvoltage Protection Eutectic Die Attach 150oC Operating Temperature TX, TXV and Space Level Screening Available Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage Average Rectified Forward Current (Resistive Load, 60Hz, Sine Wave, TC= 100oC) Peak Surge Current (8.3 ms Pulse, Half Sine Wave Superimposed.
