SFT5001 5 AMPS 125 Volts High Speed PNP Transistor

Solid State Devices, Inc. 14830 Valley View Blvd La Mirada, Ca 90638 Phone: (562) 404-7855 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ SFT5001 __ __ __ __ │ │ │ └ Screening 2/ __ = Not Screened │││ TX = TX Level │││ TXV = TXV Level │││ S = S Level │││ │ │ └ Lead Bend 3/ 4/ __ = Straight Leads ││ UB = Up Bend ││ DB = Down Bend │ └ Pin Out Configuration 5/ __ = Normal │ R = Optional │ └ P.

SFT5001 Features

* Radiation Tolerant

* Superior to JEDEC 2N5001 Series

* High Frequency, fT > 80MHz

* Very Low Saturation

* Fast Switching, 130 ns Max t(on)

* Designed for Complementary Use with SFT3997

* TX, TXV, S-Level Screening Available. Consult Factory.

SFT5001 Datasheet (119.55 KB)

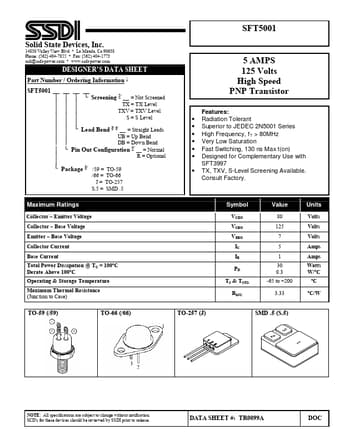

SFT5001 Datasheet Preview — Preview of SFT5001 PDF

Datasheet Details

Part number:

SFT5001

Manufacturer:

SSDI

File Size:

119.55 KB

Description:

5 amps 125 volts high speed pnp transistor.
