SFX5096-5 Datasheet - SSDI

SFX5096-5 High Voltage PNP Transistor

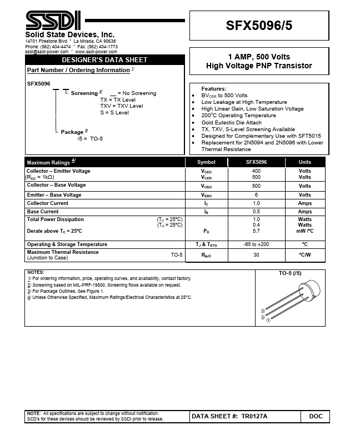

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, CA 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ SFX5096/5 1 AMP, 500 Volts High Voltage PNP Transistor SFX5096 __ __ │ └ Screening 2/ __ = No Screening │ TX = TX Level │ TXV = TXV Level │ S = S Level │ │ └ Package 3/ /5 = TO-5 Maximum Ratings 4/ Collector Emitter Voltage (RBE = 1kΩ) Collector Base .

SFX5096-5 Features

* BVCER to 500 Volts

* Low Leakage at High Temperature

* High Linear Gain, Low Saturation Voltage

* 200oC Operating Temperature

* Gold Eutectic Die Attach

* TX, TXV, S-Level Screening Available

* Designed for Complementary Use with SFT5015

* Replacement for 2N5094 an

SFX5096-5 Datasheet

Datasheet Details

Part number:

SFX5096-5

Manufacturer:

SSDI

File Size:

121.39 KB

Description:

High voltage pnp transistor.
