SGB10UF - HIGH VOLTAGE RECTIFIER

Product Overview

SSDI

📥 Download Datasheet

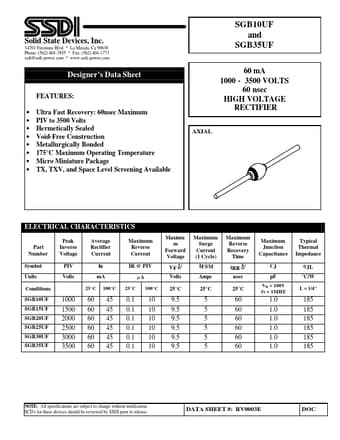

SGB10UF HIGH VOLTAGE RECTIFIER by SSDI - Datasheet Preview — Datasheet preview – SGB10UF

Datasheet Details

Part number	SGB10UF
Manufacturer	SSDI
File Size	34.97 KB
Description	HIGH VOLTAGE RECTIFIER
Datasheet	SGB10UF Datasheet
Additional preview pages of the SGB10UF datasheet.

Product details

Features

Ultra Fast Recovery: 60nsec Maximum.
PIV to 3500 Volts.
Hermetically Sealed.
Void-Free Construction.
Metallurgically Bonded.
175°C Maximum Operating Temperature.
Micro Miniature Package.
TX, TXV, and Space Level Screening Available SGB10UF and SGB35UF 60 mA 1000 - 3500 VOLTS 60 nsec HIGH.
