SGB15UF, SGB10UF - HIGH VOLTAGE RECTIFIER

SGB15UF Description

Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.

SGB15UF Features

* Ultra Fast Recovery: 60nsec Maximum
* PIV to 3500 Volts
* Hermetically Sealed
* Void-Free Construction
* Metallurgically Bonded
* 175°C Maximum Operating Temperature
* Micro Miniature Package
* TX, TXV, and Space Level Screening Avai

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SGB15UF, SGB10UF. Please refer to the document for exact specifications by model.

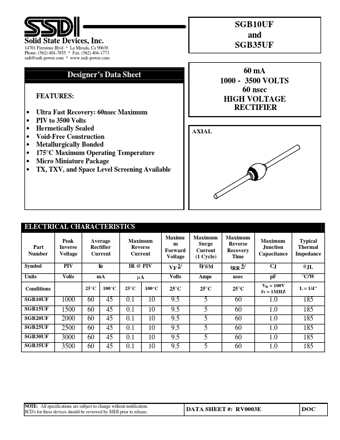

datasheet Preview Page 2

Datasheet Details

Part number
SGB15UF, SGB10UF
Manufacturer
SSDI
File Size
34.97 KB
Datasheet
SGB10UF-SSDI.pdf
Description
HIGH VOLTAGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SGB15UF, SGB10UF.
Please refer to the document for exact specifications by model.
