SVR1033P NEGATIVE ADJUSTABLE LINEAR VOLTAGE REGULATOR

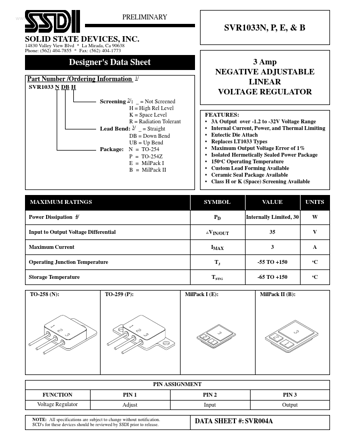

www.DataSheet4U.com PRELIMINARY SVR1033N, P, E, & B SOLID STATE DEVICES, INC. 14830 Valley View Blvd La Mirada, Ca 90638 Phone: (562) 404-7855 Fax: (562) 404-1773 Designer's Data Sheet Part Number /Ordering Information SVR1033 N DB H Screening 2/: _ = Not Screened H = High Rel Level K = Space Level R = Radiation Tolerant Lead Bend: 3/ _ = Straight DB = Down Bend UB = Up Bend Package: N = TO-254 P = TO-254Z E = MilPack I B = MilPack II 1/ 3 Amp NEGATIVE ADJUSTABLE LINEAR VOLTAGE R.

SVR1033P Features

* 3A Output over -1.2 to -32V Voltage Range Internal Current, Power, and Thermal Limiting Eutectic Die Attach Replaces LT1033 Types Maximum Output Voltage Error of 1% Isolated Hermetically Sealed Power
