SST25LF020A - (SST25LF020A / SST25LF040A) 2 Mbit / 4 Mbit SPI Serial Flash

SST25LF020A Description

www.DataSheet4U.com 2 Mbit / 4 Mbit SPI Serial Flash SST25LF020A / SST25LF040A SST25LF020A / 040A2Mb / 4Mb Serial Peripheral Interface (SPI) flash me.
SST’s serial flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package occupying less board space and ultima.

SST25LF020A Features

* Single 3.0-3.6V Read and Write Operations
* Serial Interface Architecture
* SPI Compatible: Mode 0 and Mode 3
* 33 MHz Max Clock Frequency
* Superior Reliability
* Endurance: 100,000 Cycles (typical)
* Greater than 100 years Data Retention

📥 Download Datasheet

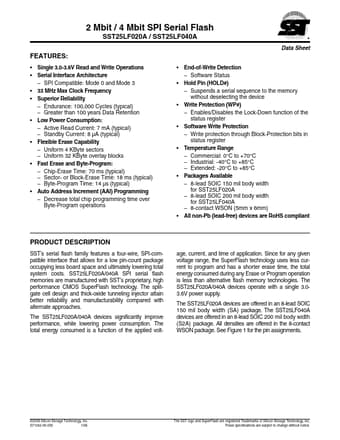

Preview of SST25LF020A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SST25LF020A
Manufacturer
SST
File Size
326.82 KB
Datasheet
SST25LF020A_SST.pdf
Description
(SST25LF020A / SST25LF040A) 2 Mbit / 4 Mbit SPI Serial Flash
