93C46CB3 - ST93C46CB

Datasheet Summary

Description

This specification covers a range of 1K bit serial EEPROM products, the ST93C46A,46C,46T specified at 5V±10% and the ST93C47C,47T specified at 3V to 5.5V.

In the text, products are referred to as ST93C46.

ST Microelectronics

📥 Download Datasheet

Datasheet Details

Part number	93C46CB3
Manufacturer	STMicroelectronics
File Size	167.88 KB
Description	ST93C46CB
Datasheet	93C46CB3 Datasheet
Additional preview pages of the 93C46CB3 datasheet.

📁 Similar Datasheet

93C46C - 1K Microwire Compatible Serial EEPROM (Microchip)
93C46 - 1K Microwire Serial EEPROM (Microchip Technology)
93C46 - 3-Wire Serial EEPROM (FMD)
93C46 - EEPROM (ATMEL)
93C46A - 3-Wire Serial EEPROM (FMD)
93C46A - 1K Microwire Compatible Serial EEPROM (Microchip)
93C46B - 1K Microwire Compatible Serial EEPROM (Microchip Technology)
93C488 - 5x86/486 Single Chip PCI controller (ALD)
93C06 - 256 Bit/1K 5.0V CMOS Serial EEPROM (Microchip Technology)
93C56 - 3-Wire Serial EEPROMs (ATMEL Corporation)

Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

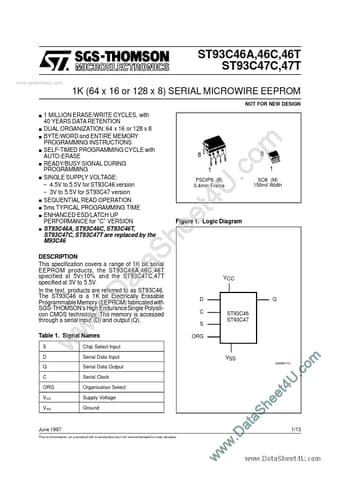

ST93C46A,46C,46T ST93C47C,47T www.datasheet4u.com 1K (64 x 16 or 128 x 8) SERIAL MICROWIRE EEPROM NOT FOR NEW DESIGN 1 MILLION ERASE/WRITE CYCLES, with 40 YEARS DATA RETENTION DUAL ORGANIZATION: 64 x 16 or 128 x 8 BYTE/WORD and ENTIRE MEMORY PROGRAMMING INSTRUCTIONS SELF-TIMED PROGRAMMING CYCLE with AUTO-ERASE READY/BUSY SIGNAL DURING PROGRAMMING SINGLE SUPPLY VOLTAGE: – 4.5V to 5.5V for ST93C46 version – 3V to 5.5V for ST93C47 version SEQUENTIAL READ OPERATION 5ms TYPICAL PROGRAMMING TIME ENHANCED ESD/LATCH UP PERFORMANCE for ”C” VERSION ST93C46A, ST93C46C, ST93C46T, ST93C47C, ST93C47T are replaced by the M93C46 8 1 PSDIP8 (B) 0.

Published: Oct 21, 2006 |
