M491B1

SINGLE-CHIP VOLTAGE SYNTHESIS TUNING SYSTEM WITH 1 ANALOG CONTROL

M491B1 Features

* is implemented by combination of a rate multiplier and pulse width principle. With a tuning voltage increasing from zero, the number of pulses increases continuously up to

M491B1 General Description

The M491B is a monolithic N-MOS LSI circuit including a Floating-gate Non-Volatile Memory for storage of up to 16 stations. Tuning of the station is performed with a 8192 step D/A converter, using the principle of voltage synthesis. It is designed for 7-segment LED displays. Direct memory selection .

M491B1 Datasheet (135.73 KB)

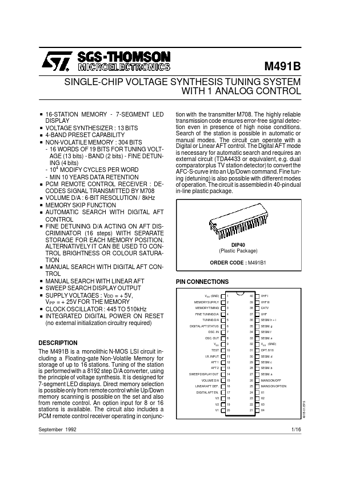

Preview of M491B1 PDF

Datasheet Details

Part number:

M491B1

Manufacturer:

STMicroelectronics ↗

File Size:

135.73 KB

Description:

Single-chip voltage synthesis tuning system with 1 analog control.
