POWERPLUG24W - AC/DC POWER SUPPLY

POWERPLUG24W Description

POWER PLUG 24W AC/DC POWER SUPPLY REV.01 .
The Power Plug is a high efficiency AC/DC switch mode constant voltage generator.

POWERPLUG24W Features

* s s s s s s s s s s PRIMARY SWITCHED WALL PLUG-IN power supply WIDE RANGE INPUT VOLTAGE 90÷264Vac 24W SINGLE OUTPUT EMC COMPLIANCE ACCORDING TO EU DIRECTIVES SAFETY APPROVAL ACCORDING TO EN60950 / EN60065 CE MARKED OUTPUT VOLTAGE PRECISION: ±5% OUTPUT RIPPLE VOLTAGE

POWERPLUG24W Applications

* this wall plug-in power supply performs up to 24W output power. The output voltage and current levels can be set up by design in accordance with customer requirements. Typical reference values for the off the shelf solution are 24V and 1A with the input Vac 230 Vrms. Coming into a compact housing,

📥 Download Datasheet

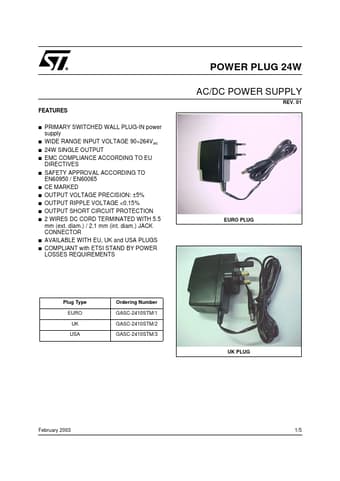

Preview of POWERPLUG24W PDF
datasheet Preview Page 2 datasheet Preview Page 3
