SA12B5 SCHOTTKY ARRAYS

SA12B5 Description

® SA12B5 SA16B3 / SA16B6 SCHOTTKY ARRAYS Application Specific Discretes A.S.D.TM MAIN APPLICATIONS Any electronic equipment where suitable bus termi.
Dedicated to bus termination, the Schottky arrays SA12B5, SA16B3 and SA16B6 minimise stray emissions from PCB tracks.

SA12B5 Features

* 12-BIT (SA12) OR 16-BIT (SA16) DUAL SCHOTTKY DIODE ARRAYS REVERSE VOLTAGE : VRRM = 7.5 V FORWARD VOLTAGE VF < 1.3 V SO-16 BENEFITS Provides impedance matching, and minimizes distortion. Lowers EMI / RFI radiation. Eliminates negative voltage : minimizes risk of latch-up for sensitive ICs. Saves va

📥 Download Datasheet

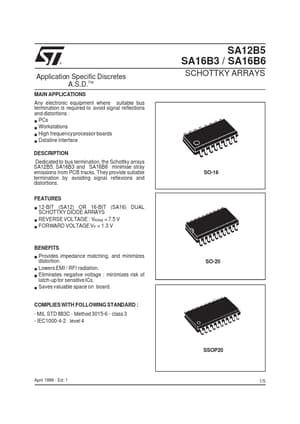

Preview of SA12B5 PDF
