SD4017 Datasheet - ST Microelectronics

SD4017 RF & MICROWAVE TRANSISTORS 806-960 MHz CELLULAR BASE STATIONS

The SD4017 is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for high linearity class AB operation for cellular base station applications. ABSOLUTE MAXIMUM RATINGS (T case = 25 ° C) Symbol Parameter 1. Collector 2. Base 3. Emitter Value Unit V.
SD4017 RF & MICROWAVE TRANSISTORS 806-960 MHz CELLULAR BASE STATIONS . . . . . . . . . . GOLD METALLIZATION DIFFUSED EMITTER BALLASTING INTERNAL INPUT MATCHING DESIGNED FOR LINEAR OPERATION HIGH SATURATED POWER CAPABILITY COMMON EMITTER CONFIGURATION POUT = 30 W MIN. WITH 7.5 dB GAIN η C = 55% TYPICAL TYPICAL LOAD MISMATCH CAPABILITY: 20:1 ALL ANGLES RATED CONDITIONS 10:1 ALL ANGLES @ ± 20% RATED VOLTAGE TYPICAL OVERDRIVE SURVIVABILITY 5 dB .230 6LFL (M142) epoxy sealed ORDER CODE SD4017 BRAN.

SD4017 Datasheet (87.15 KB)

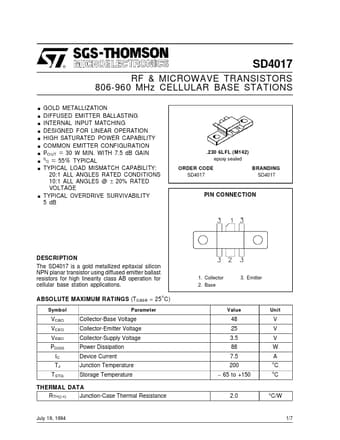

Preview of SD4017 PDF
SD4017 Datasheet Preview Page 2 SD4017 Datasheet Preview Page 3

Datasheet Details

Part number:

SD4017

Manufacturer:

STMicroelectronics ↗

File Size:

87.15 KB

Description:

Rf & microwave transistors 806-960 mhz cellular base stations.
