SOT23-6L Datasheet, Switch, ST Microelectronics

SOT23-6L Features

  • Switch are fast switching speed (t ON=7ns, tOFF=4.5ns) and Low Power Consumption (<0.01µW Typ.). ESD immunity is higher than 1000V per Method 3015.7 of MIL-STD-883B. It’s avalable in the comme

PDF File Details

Part number:

SOT23-6L

Manufacturer:

STMicroelectronics ↗

File Size:

60.74kb

Download:

📄 Datasheet

Description:

Low voltage 4ohm spdt switch. The STG719 is an high speed SPDT CMOS SWITCH frabricated in silicon gate C2MOS technology. It is designed to operate from 1.8V to 5.5

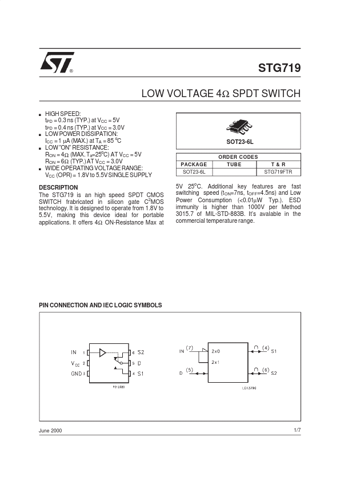

Datasheet Preview: SOT23-6L 📥 Download PDF (60.74kb)
Page 2 of SOT23-6L Page 3 of SOT23-6L

SOT23-6L Application

  • Applications It offers 4Ω ON-Resistance Max at 5V 25oC. Additional key features are fast switching speed (t ON=7ns, tOFF=4.5ns) and Low Power Cons
