ST1802FX HIGH VOLTAGE FAST - SWITCHING NPN POWER TRANSISTOR

The ST1802FX is manufactured using new Diffused Collector Technology for more stable operation Vs base drive circuit variations resulting in very low worst case dissipation. Order codes Part Number ST1802FX Marking 1802FX Package ISOWATT218FX Packing TUBE October 2005 Rev 1 1/10 www.st.com 10 Do.

ST1802FX Features

* NEW SERIES, ENHANCED PERFORMANCE FULLY INSULATED POWER PACKAGE (U.L. COMPLIANT) FOR EASY MOUNTING HIGH VOLTAGE CAPABILITY (>1500V) HIGH SWITCHING SPEED TIGTHER hFE CONTROL IMPROVED RUGGEDNESS IN COMPLIANCE WITH THE 2002/93/EC EUROPEAN DIRECTIVE ISOWATT218FX

ST1802FX Datasheet (195.95 KB)

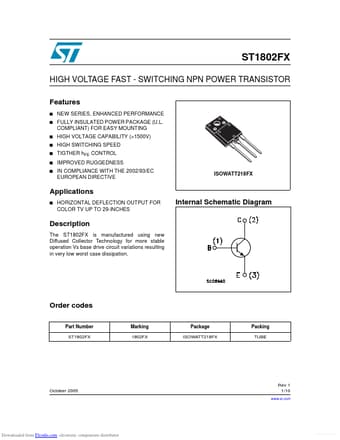

Preview of ST1802FX PDF
