ST2009DHI HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

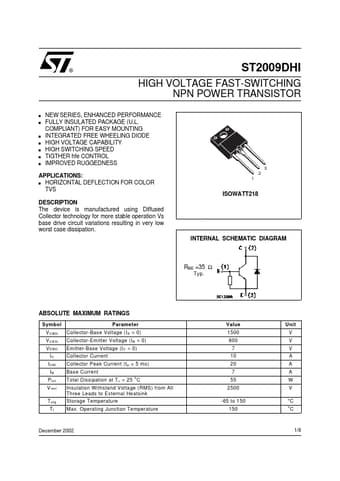

The device is manufactured using Diffused Collector technology for more stable operation Vs base drive circuit variations resulting in very low worst case dissipation. ISOWATT218 INTERNAL SCHEMATIC DIAGRAM RBE =35 Ω Typ. ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC I CM IB P tot V isol T.

ST2009DHI_STMicroelectronics.pdf

Preview of ST2009DHI PDF
ST2009DHI Datasheet Preview Page 2 ST2009DHI Datasheet Preview Page 3

Datasheet Details

Part number:

ST2009DHI

Manufacturer:

STMicroelectronics ↗

File Size:

260.27 KB

Description:

High voltage fast-switching npn power transistor.
