ST778 ADJUSTABLE OUTPUT DC-DC CONVERTER

The ST777/778/779 are dc-dc converters that step-up from low voltage inputs requiring only three external components, an inductor (typically 22µH) and two capacitors. The device include a Sinchronous Rectifier that eliminates the need for an external catch diode, and allows regulation even when the .
www.DataSheet4U.com ST777/778/779 LOW VOLTAGE INPUT, 3-3.3V/5V/ADJUSTABLE OUTPUT DC-DC CONVERTER WITH SYNCHRONOUS RECTIFIER s s s s s s s s s 1V TO 6V INPUT GUARANTEES START-UP UNDER LOAD MAXIMUM OUTPUT CURRENT OF 300mA (778 OR 779 ADJUSTED TO 3V) LOAD FULLY DISCONNECTED IN SHUTDOWN TYPICAL EFFICIENCY OF 82% INTERNAL 1A POWER SWITCH AND SYNCHRONOUS RECTIFIER ADJUSTABLE CURRENT LIMIT ALLOWS LOW-COST INDUCTORS SUPPLY CURRENT OF 270µA (NO LOAD) SHUTDOWN SUPPLY CURRENT 20µA PACKAGE AVAILABLE:.

ST777_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ST778, ST777. Please refer to the document for exact specifications by model.

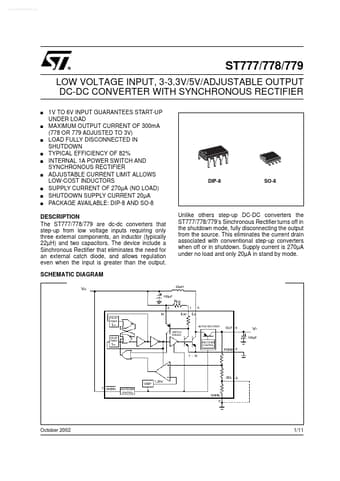

ST778 Datasheet Preview Page 2 ST778 Datasheet Preview Page 3

Datasheet Details

Part number:

ST778, ST777

Manufacturer:

STMicroelectronics ↗

File Size:

273.68 KB

Description:

Adjustable output dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: ST778, ST777.
Please refer to the document for exact specifications by model.
