STA1102R Datasheet - ST Microelectronics

STA1102R 2 differential-pair channel eSATA signal re-driver

The STA1102R is a serial data signal re-driver. It integrates two differential-pair channels suitable for eSATA signals up to a 3 Gbps data rate, in compliance with the SATA rev 2.6 specification. An input detector is available at each channel, which constantly monitors the input signal level for ou.

STA1102R Features

* Supports eSATA data rate of 1.5 Gbps and 3 Gbps Supports complete eSATA bus of two 2-wire differential-pair channels Squelch detector for validity of input differential signal Single operating supply (VCC) range of 3.3 V ± 10% Low power mo

STA1102R Datasheet (245.23 KB)

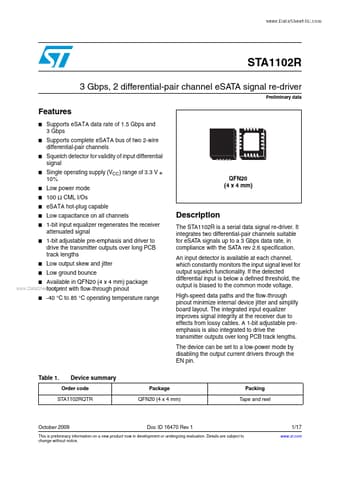

Preview of STA1102R PDF

Datasheet Details

Part number:

STA1102R

Manufacturer:

STMicroelectronics ↗

File Size:

245.23 KB

Description:

2 differential-pair channel esata signal re-driver.
