STH7NA80FI Datasheet - ST Microelectronics

STH7NA80FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

www.DataSheet4U.com ® STW7NA80 STH7NA80FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STW 7NA80 STH7NA80F I V DSS 800 V 800 V R DS(on) < 1.9 Ω < 1.9 Ω ID 6.5 A 4 A s s s s s s s TYPICAL RDS(on) = 1.68 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD 1 2 3 2 1 3 TO-247 ISOWATT218 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MO.

STH7NA80FI Datasheet (322.16 KB)

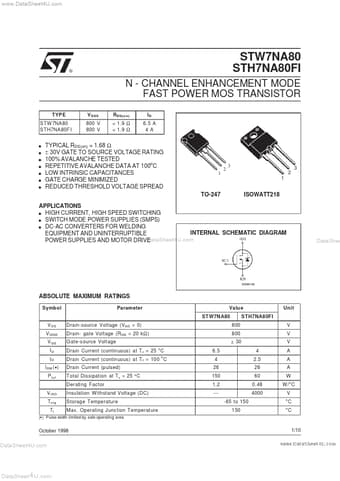

STH7NA80FI Datasheet Preview — Preview of STH7NA80FI PDF

Datasheet Details

Part number:

STH7NA80FI

Manufacturer:

STMicroelectronics ↗

File Size:

322.16 KB

Description:

N - channel enhancement mode fast power mos transistor.
