STMPS2262 - Enhanced dual-channel power switche

Product Overview

ST Microelectronics

Datasheet Details

Part number	STMPS2262
Manufacturer	STMicroelectronics
File Size	1.26 MB
Description	Enhanced dual-channel power switche
Datasheet	STMPS2262 Datasheet
Note	This datasheet PDF includes multiple part numbers: STMPS2262, STMPS2242. Please refer to the document for exact specifications by model.

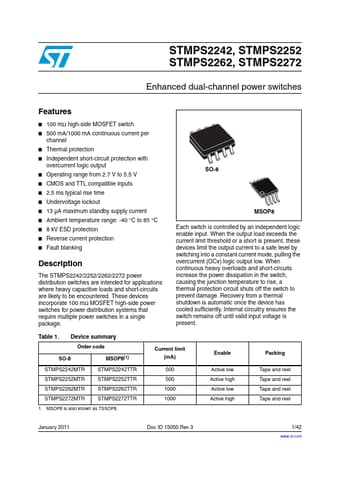

Additional preview pages of the STMPS2262 datasheet.

Product details

Description

The STMPS2242/2252/2262/2272 power distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered.

Features

100 mΩ high-side MOSFET switch.
500 mA/1000 mA continuous current per channel.
Thermal protection.
Independent short-circuit protection with overcurrent logic output.
Operating range from 2.7 V to 5.5 V.
CMOS and TTL compatible inputs.
2.5 ms typical rise time.
Undervoltage lockout.
13 µA maximum standby supply current.
Ambient temperature range: -40 °C to 85 °C.
8 kV ESD protection.
Reverse current protection.
Fault blanking Desc.
