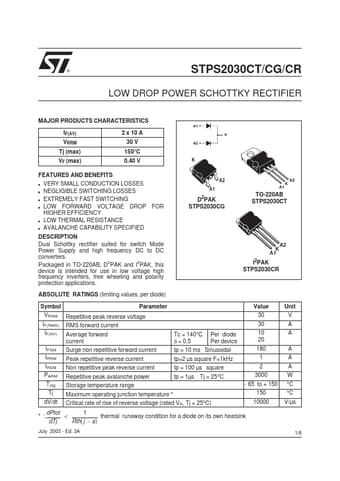

FEATURES AND BENEFITS VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING LOW FORWARD VOLTAGE DROP FOR HIGHER EFFICIENCY LOW THERMAL RESISTANCE AVALANCHE CAPABILITY SPECIFIED s s s s s s A2 A1 A1 A2 D2PAK STPS2030CG TO-220AB STPS2030CT DESCRIPTION Dual Schottky rectifier suited for switch Mode Power Supply and high frequency DC to DC converters. Packaged in TO-220AB, D2PAK and I2PAK, this device is intended for use in low voltage high frequency inverters, free wheeling and polarity protection applications. ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current IF(AV) IFSM IRRM IRSM PARM Tstg Tj d V/dt - : Average forward current Surge non repetitive forward current Peak repetitive reverse current Non repetitive peak reverse current Repetitive peak avalanche power Storage temperature range Maximum operating junction temperature - Critical rate of rise of reverse voltage (rated VR, Tj = 25°C) Tc = 140°C δ = 0.5 Per diode Per device K A1 A2 I2PAK STPS2030CR Value 30 30 10 20 180 1 2 3000 - 65 to + 150 150 10000 Unit V A A A A A W °C °C V/µs tp = 10 ms Sinusoidal tp=2 µs square F=1k Hz tp = 100 µs square tp = 1µs Tj = 25°C d Ptot 1 thermal runaway condition for a diode on its own heatsink < d Tj Rth( j - a ) 1/6 July 2003 - Ed: 3A STPS2030CT/CG/CR THERMAL RESISTANCES Symbol Rth(j-c) Rth(c) STATIC ELECTRICAL CHARACTERISTICS (per diode) Symbol IR - VF - Parameter Reverse leakage current Forward voltage drop Tests Conditions Tj = 25°C Tj = 125°C Tj = 25°C Tj = 125°C Tj = 25°C Tj = 125°C VR = VRRM IF = IF = IF = IF = 10 A 10 A 20 A 20 A Min. Typ. 0.15 80 0.44 0.34 0.50 0.44 Max. 1.0 160 0.50 0.40 0.58 0.52 Unit m A V Parameter Junction to case TO-220AB - D PAK - I PAK 2 2 Per diode Total Coupling Value 2.2 1.3 0.3 Unit °C/W °C/W Pulse test : - tp = 380 µs, δ < 2% To evaluate the conduction losses use the following equation : P = 0.28 x IF(AV) + 0.012...
