STV5723P 3-HEAD PLAYBACK AND RECORD AMPLIFIER

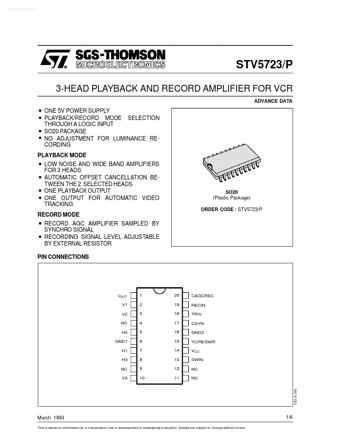

www.DataSheet4U.com STV5723/P 3-HEAD PLAYBACK AND RECORD AMPLIFIER FOR VCR PLAYBACK MODE LOW NOISE AND WIDE BAND AMPLIFIERS FOR 3 HEADS AUTOMATIC OFFSET CANCELLATION BETWEEN THE 2 SELECTED HEADS ONE PLAYBACK OUTPUT ONE OUTPUT FOR AUTOMATIC VIDEO TRACKING RECORD AGC AMPLIFIER SAMPLED BY SYNCHRO SIGNAL RECORDING SIGNAL LEVEL ADJUSTABLE BY EXTERNAL RESISTOR . . . . . . . . . . ADVANCE DATA ONE 5V POWER SUPPLY PLAYBACK/RECORD MODE SELECTION THROUGH A LOGIC INPUT SO20 PACKAGE NO ADJUSTMENT FOR L.

STV5723_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STV5723P, STV5723. Please refer to the document for exact specifications by model.
STV5723P Datasheet Preview Page 2 STV5723P Datasheet Preview Page 3

Datasheet Details

Part number:

STV5723P, STV5723

Manufacturer:

STMicroelectronics ↗

File Size:

200.63 KB

Description:

3-head playback and record amplifier.

Note:

This datasheet PDF includes multiple part numbers: STV5723P, STV5723.
Please refer to the document for exact specifications by model.
