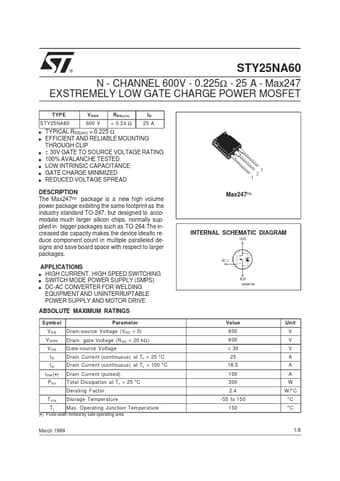

STY25NA60
DESCRIPTION
The Max247™ package is a new high volume power package exibiting the same footprint as the industry standard TO-247, but designed to acodate much larger silicon chips, normally supplied in bigger packages such as TO-264.The increased die capacity makes the device idealto reduce ponent count in multiple paralleled designs and save board space with respect to larger packages. APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTER FOR WELDING EQUIPMENT AND UNINTERRUPTABLE POWER SUPPLY AND MOTOR DRIVE s
Max247™
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symb ol V DS V DGR V GS ID ID I DM (
- ) P tot T s tg Tj Parameter Drain-source Voltage (VGS = 0) Drain- gate Voltage (RGS = 20 k Ω ) G ate-source Voltage Drain Current (continuous) at Tc = 25 C Drain Current (continuous) at Tc = 100 o C Drain Current (pulsed) T otal Dissipation at Tc = 25 C Derating F actor Storage Temperature Max. O perating Junction Temperature o...
