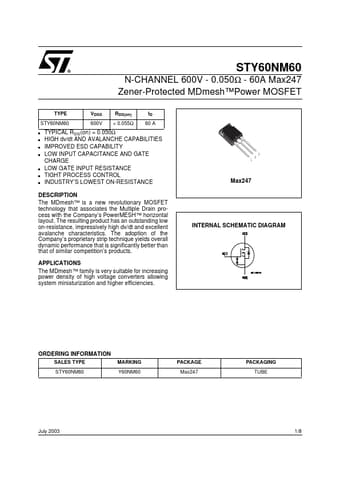

STY60NM60
DESCRIPTION
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the pany’s Power MESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the pany’s proprietary strip technique yields overall dynamic performance that is significantly better than that of similar petition’s products. APPLICATIONS The MDmesh™ family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies.
2 1
Max247
INTERNAL SCHEMATIC DIAGRAM
ORDERING INFORMATION
SALES TYPE STY60NM60 MARKING Y60NM60 PACKAGE Max247 PACKAGING TUBE
July 2003
1/8
ABSOLUTE MAXIMUM RATINGS
Symbol VDS VDGR VGS ID ID IDM ( ) PTOT VESD(G-S) dv/dt (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25°C Drain...
