STZT2222 MEDIUM POWER AMPLIFIER

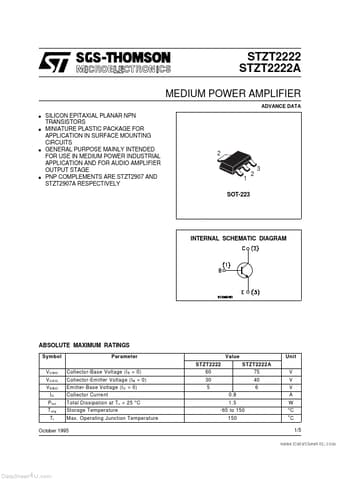

STZT2222 STZT2222A MEDIUM POWER AMPLIFIER ADVANCE DATA s s s s SILICON EPITAXIAL PLANAR NPN TRANSISTORS MINIATURE PLASTIC PACKAGE FOR APPLICATION IN SURFACE MOUNTING CIRCUITS GENERAL PURPOSE MAINLY INTENDED FOR USE IN MEDIUM POWER INDUSTRIAL APPLICATION AND FOR AUDIO AMPLIFIER OUTPUT STAGE PNP COMPLEMENTS ARE STZT2907 AND STZT2907A RESPECTIVELY 2 1 SOT-223 2 3 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC P tot T stg Tj Parameter STZT2222 Collector-Bas.
