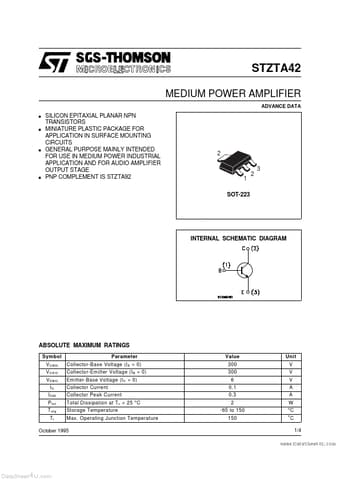

STZTA42
MEDIUM POWER AMPLIFIER
ADVANCE DATA s s s s
SILICON EPITAXIAL PLANAR NPN TRANSISTORS MINIATURE PLASTIC PACKAGE FOR APPLICATION IN SURFACE MOUNTING CIRCUITS GENERAL PURPOSE MAINLY INTENDED FOR USE IN MEDIUM POWER INDUSTRIAL APPLICATION AND FOR AUDIO AMPLIFIER OUTPUT STAGE PNP PLEMENT IS STZTA92
SOT-223
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol V CBO V CEO V EBO IC I CM P tot T stg Tj Parameter Collector-Base Voltage (I E = 0) Collector-Emitter Voltage (I B = 0) Emitter-Base Voltage (I C = 0) Collector Current Collector Peak Current Total Dissipation at T c = 25 o C Storage Temperature Max. Operating Junction Temperature Value 300 300 6 0.1 0.3 2 -65 to 150 150 Unit V V V A A W o o
C C 1/4
October 1995
Data Sheet 4 U .
THERMAL DATA
R thj-amb
- R thj-tab
- Thermal Resistance Junction-Ambient Thermal Resistance Junction-Collecor Tab Max Max 62.5 8 o o
C/W C/W
- Mounted on a ceramic substrate area = 30 x 35 x 0.7 mm
ELECTRICAL...
