TDA1175P - LOW-NOISE VERTICAL DEFLECTION SYSTEM

Datasheet Summary

Description

The TDA1175P is a monolithic integrated circuit in POWERDIP16 plastic package.

It is intended for use in black and white and colour TV receivers.

Low-noise makes this device particularly suitable for use in monitors.

📥 Download Datasheet

Datasheet preview – TDA1175P

Datasheet Details

Part number TDA1175P
Manufacturer STMicroelectronics
File Size 171.84 KB
Description LOW-NOISE VERTICAL DEFLECTION SYSTEM
Datasheet download datasheet TDA1175P Datasheet
Additional preview pages of the TDA1175P datasheet.

📁 Similar Datasheet

  • TDA1170 - TV VERTICAL DEFLECTION SYSTEM (SGS)
  • TDA1170 - TV VERTICAL DEFLECTION SYSTEMS (Fairchild Semiconductor)
  • TDA1170D - LOW-NOISE TV VERTICAL DEFLECTION SYSTEM (SGS)
  • TDA1170S - TV VERTICAL DEFLECTION SYSTEM (ETC)
  • TDA1170SH - TV VERTICAL DEFLECTION SYSTEM (ETC)
  • TDA11105PS - TDA11105PS (ETC)
  • TDA11106PS - UOC-TOP (ETC)
  • TDA1111 - Power Audio Amplifiers (SGS-Thomson)
  • TDA11115PS - Microprocessor (ETC)
  • TDA11145 - AMPLIFIER (ETC)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

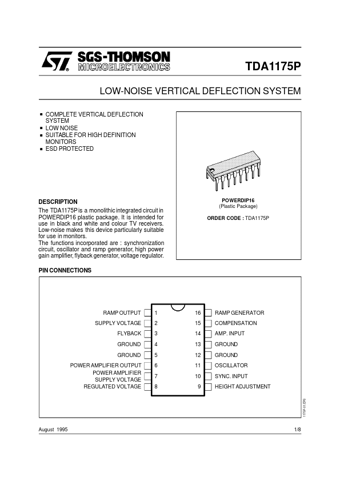

TDA1175P LOW-NOISE VERTICAL DEFLECTION SYSTEM . . . . COMPLETE VERTICAL DEFLECTION SYSTEM LOW NOISE SUITABLE FOR HIGH DEFINITION MONITORS ESD PROTECTED DESCRIPTION The TDA1175P is a monolithic integrated circuit in POWERDIP16 plastic package. It is intended for use in black and white and colour TV receivers. Low-noise makes this device particularly suitable for use in monitors. The functions incorporated are : synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, voltage regulator.
