TDA7264 - 25 + 25W STEREO AMPLIFIER

TDA7264 Description

TDA7264 25 W + 25 W stereo amplifier with mute and standby .
The TDA7264 is class-AB dual audio power amplifier assembled in a Multiwatt package.

TDA7264 Features

* Wide supply voltage range (up to ±22.5 V)
* Split supply
* High output power
* 25 W + 25 W into 8 Ω with VS = ±20 V and THD = 10%
* No “pop” at turn on/off
* Mute (“pop”-free)
* Standby feature (low Iq)
* Few external components

TDA7264 Applications

* such as hi-fi music centers and stereo TV sets. Table 1. Device summary Order code Operating temperature Package TDA7264 0 to 70 °C Multiwatt8 Packaging Tube Figure 1. Applications circuit 15K 1µF MUTE/ ST-BY IN (L) 4 6 1µF +5V µP 15K 18K GND 7 +VS +VS 2 1000µF + 3 OUT (L) - 4.7Ω 1

📥 Download Datasheet

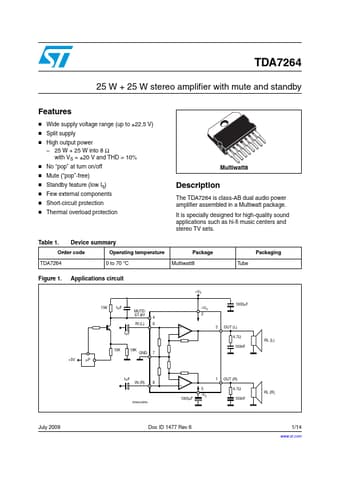

Preview of TDA7264 PDF
