TDA7361

Low Voltage NBFM IF System

ST Microelectronics

TDA7361 General Description

The TDA7361 is a low-power narrow band FM IF demodulation system operable to less than 2 V supply voltage. The device includes Oscillator, Mixer, Limiting DataSheet4U.com Amplifier, Quadrature Discriminator, Op. Amp. Squelch, Scan Control and Mute Switch. SO16 The TDA7361 is designed for use in NBFM.

TDA7361 Datasheet (371.53 KB)

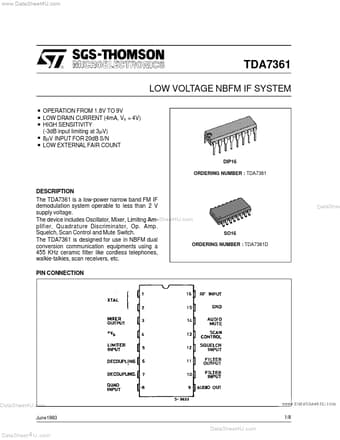

TDA7361 Datasheet Preview — Preview of TDA7361 PDF

Datasheet Details

Part number:

TDA7361

Manufacturer:

STMicroelectronics ↗

File Size:

371.53 KB

Description:

Low voltage nbfm if system.
www.DataSheet4U.com TDA7361 LOW VOLTAGE NBFM IF SYSTEM . . . . . OPERATION FROM 1.8V TO 9V LOW DRAIN CURRENT (4mA, Vs = 4V) HIGH SENSITIVITY (-3dB .
