TDA7372A - 4 x 6W POWER AMPLIFIER FOR CAR RADIO

The TDA7372A is a new technology class AB quad channels Audio Power Amplifier in Multiwatt15 package designed for car radio applications.

Thanks to the fully complementary PNP/NPN output configuration the TDA7372A delivers a rail to rail voltage swing with no need of boostrap capacitors.

April 1995

TDA7372A 4 x 6W POWER AMPLIFIER FOR CAR RADIO ADVANCE DATA HIGH POWER CAPABILITY: 4x6W min/4Ω @14.4V, 1KHz, 10% 4x10W typ/2Ω @14.4V, 1KHz, 10% MINIMUM EXTERNAL COMPONENT COUNT - INTERNALLY FIXED GAIN (20dB) - NO BOOTSTRAP CAPACITORS - NO EXTERNAL COMPENSATION ST-BY FUNCTION (CMOS COMPATIBLE) MUTE FUNCTION (CMOS COMPATIBLE) NO AUDIBLE POP DURING MUTE/ST-BY OPERATIONS LOW SUPPLY SELF MUTING PROGRAMMABLE TURN ON DELAY PROTECTIONS: AC OUTPUT SHORT CIRCUIT TO GND DC OUTPUT SHORT CIRCUIT TO GND AND T

TDA7372A Features

* a St-BY function which shuts down the internal bias generators when the ST-BY input is low. In ST-BY mode the amplifier sinks a small current (in the range of few µAs). When the St-BY pin is high the IC becomes fully operational. A mute function is also provided. This reduces the gain of the input s

TDA7372A_STMicroelectronics.pdf

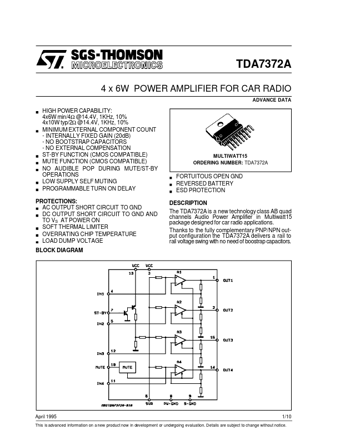

TDA7372A Datasheet Preview — Preview of TDA7372A PDF

Datasheet Details

Part number:

TDA7372A

Manufacturer:

STMicroelectronics ↗

File Size:

170.39 KB

Description:

4 x 6w power amplifier for car radio.
