TDA7372B - 4 x 6W POWER AMPLIFIER FOR CAR RADIO

The TDA7372B is a new technology class AB quad channels Audio Power Amplifier in Multiwatt15 package designed for car radio applications.

Thanks to the fully complementary PNP/NPN output configuration the TDA7372B delivers a rail to rail voltage swing with no need of boostrap capacitors.

April 1995

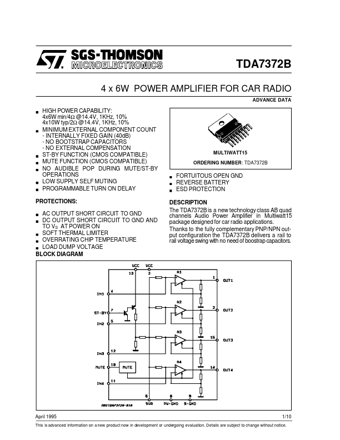

TDA7372B 4 x 6W POWER AMPLIFIER FOR CAR RADIO ADVANCE DATA HIGH POWER CAPABILITY: 4x6W min/4Ω @14.4V, 1KHz, 10% 4x10W typ/2Ω @14.4V, 1KHz, 10% MINIMUM EXTERNAL COMPONENT COUNT - INTERNALLY FIXED GAIN (40dB) - NO BOOTSTRAP CAPACITORS - NO EXTERNAL COMPENSATION ST-BY FUNCTION (CMOS COMPATIBLE) MUTE FUNCTION (CMOS COMPATIBLE) NO AUDIBLE POP DURING MUTE/ST-BY OPERATIONS LOW SUPPLY SELF MUTING PROGRAMMABLE TURN ON DELAY PROTECTIONS: AC OUTPUT SHORT CIRCUIT TO GND DC OUTPUT SHORT CIRCUIT TO GND AND T

TDA7372B Features

* a St-BY function which shuts down the internal bias supplies when the STBY input is low. In ST-BY mode the amplifier sinks a small current (in the range of few µAs). When the St-BY pin is high the IC becomes fully operational. A mute function is also provided. This reduces the gain of the input stag
