TDA7374B, DUAL BRIDGE AUDIO AMPLIFIER

TDA7374B DUAL BRIDGE AUDIO AMPLIFIER FOR CAR RADIO MINIMUM EXTERNAL COMPONENT COUNT NO BOOTSTRAP CAPACITORS NO BOUCHEROT CELLS CLIP DETECTOR OUTPUT HI.
The TDA7374B is a new technology class AB Audio Dual Bridge Power Amplifier in Multiwatt package designed for car radio applications.

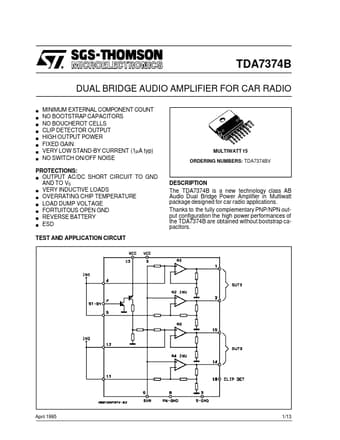

datasheet Preview Page 1 from Datasheet4u.com

TDA7374B_STMicroelectronics.pdf

TDA7374B Datasheet Preview — Preview of TDA7374B PDF

Datasheet Details

Part number:

TDA7374B

Manufacturer:

STMicroelectronics ↗

File Size:

171.32 KB

Description:

DUAL BRIDGE AUDIO AMPLIFIER

Features

* is added to avoid destruction, if during fitting to the car, a mistake on the connection of the supply is made. Open Ground When the radio is in the ON condition and the ground is accidentally opened, a standard audio amplifier will be damaged. On the TDA7374B protection diodes are included to avoid

Applications

* Thanks to the fully complementary PNP/NPN output configuration the high power performances of the TDA7374B are obtained without bootstrap capacitors. April 1995 1/13 TDA7374B PIN CONNECTION (Top view) ABSOLUTE MAXIMUM RATINGS Symbol VS VOP VPEAK IO IO Ptot Tstg, Tj DC Supply Voltage Operating S
