TSC101

High Side Current Sense Amplifier

ST Microelectronics

TSC101 Features

* Independent supply and input common-mode voltages

* Wide common-mode operating range: 2.8 to 30 V

* Wide common-mode surviving range: -0.3 to 60 V (load-dump)

* Wide supply voltage range: 4 to 24 V

* Low current consumption: ICC max = 300 µA

* Internally fixed gain: 20 V/V,

TSC101 General Description

The TSC101 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed. Wide input common-mode voltage range, low quiescent current, and tiny SOT23 packaging enable use in a wide variety of applications. .

TSC101 Datasheet (327.74 KB)

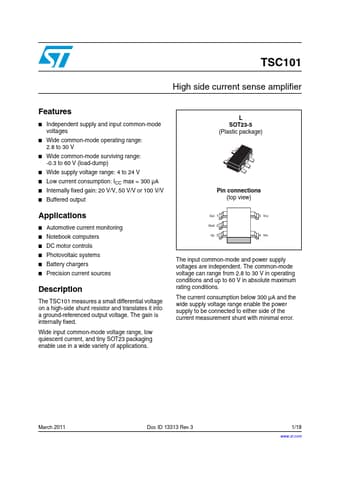

TSC101 Datasheet Preview — Preview of TSC101 PDF

Datasheet Details

Part number:

TSC101

Manufacturer:

STMicroelectronics ↗

File Size:

327.74 KB

Description:

High side current sense amplifier.
