TSC102

High-side current sense amplifier plus signal conditioning amplifier

ST Microelectronics

TSC102 Features

* Independent supply and input common-mode voltages

* Wide common-mode operating range: 2.8 to 30 V

* Wide common-mode surviving range: -16 to 60 V (reversed battery and load-dump conditions)

* Low current consumption: ICC max = 420 µA Datasheet - production data

TSC102 General Description

The TSC102 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The device’s wide input common-mode voltage range, low quiescent current and tiny TSSOP8 packaging enable use in a wide variety of applications (also available in.

TSC102 Datasheet (866.17 KB)

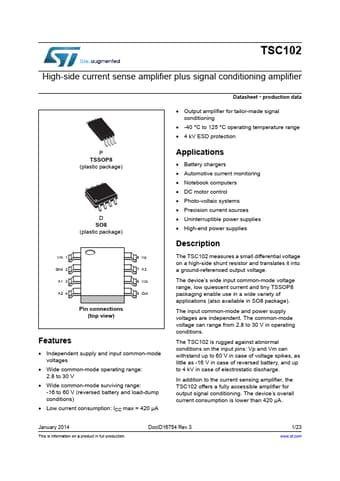

TSC102 Datasheet Preview — Preview of TSC102 PDF

Datasheet Details

Part number:

TSC102

Manufacturer:

STMicroelectronics ↗

File Size:

866.17 KB

Description:

High-side current sense amplifier plus signal conditioning amplifier.
TSC102 High-side current sense amplifier plus signal conditioning amplifier P TSSOP8 (plastic package) D SO8 (plastic package) Vm 1 Gnd 2 A1 3 A2 .
