TSH173 - Single supply triple video buffer and filter

ST Microelectronics

📥 Download Datasheet

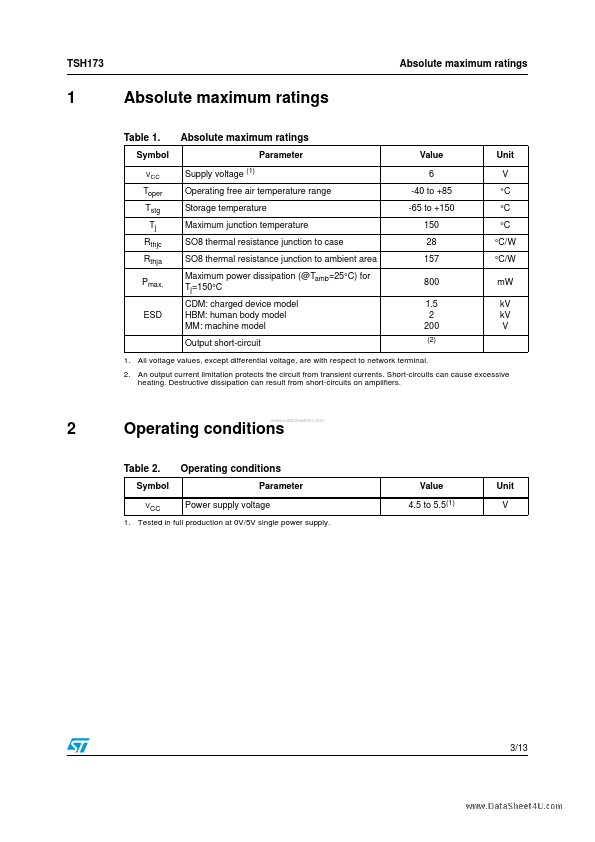

TSH173 Datasheet Preview — Preview of TSH173 PDF

Datasheet Details

Part number: TSH173
Manufacturer: STMicroelectronics ↗
File Size: 225.48 KB
Datasheet: TSH173_STMicroelectronics.pdf
Description: Single supply triple video buffer and filter

TSH173 Product details

Description

The TSH173 is a single supply triple video buffer featuring an internal gain of 6dB and an internal low pass filter of 8.2MHz cut-off frequency for each channel to fit with Standard Definition requirements for video line interfaces.

Features

4.5V to 5.5V single supply operation R-G-B, Y-Pb-Pr, Y-C-CVBS driving 3 channels with 6dB gain buffer 3 video reconstruction filters for SD 3 internal input DC level shifter No input capacitor is required Very low harmonic distortion Each output can drive AC- or DC-coupled 150Ω loads Tested on 5V power supply Data min. and max. are tested during production IN2 2 8.2MHz 5th order 8.2MHz 5th order DC Shifter Pin connections (top view) IN1 1 8.2MH.
