UC3803X - Single Color LED

Features

  • Package φ3 Round shape type, UB,UC,UG UY UR Product features : Water Clear epoxy : Pale Yellow Clear epoxy : Pale Red Clear epoxy Outer Dimension φ3 Round shape type Operation temperature range. Storage Temperature :-40℃～100℃ Operating Temperature :-40℃～85℃ Lead.
  • free soldering compatible RoHS compliant Dominant wavelength Blue Blue Green Green Yellow Red : : : : : 470nm (UB) 505nm (UC) 525nm (UG) 590nm (UY) 626nm (UR) Half Intensity Angle UB,UC,UG UY,UR : 26 deg. : 22 deg. Die.

📥 Download Datasheet

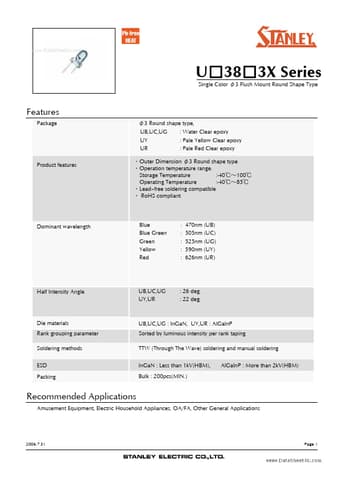

Datasheet preview – UC3803X

Datasheet Details

Part number UC3803X
Manufacturer STANLEY ELECTRIC
File Size 366.67 KB
Description Single Color LED
Datasheet download datasheet UC3803X Datasheet
Additional preview pages of the UC3803X datasheet.

📁 Similar Datasheet

  • UC3800 - LOW COST POWER-SAVING MODE PWM CONTROLLER (Unisonic Technologies)
  • UC3816A - LOW COST POWER-SAVING MODE PWM CONTROLLER (UTC)
  • UC382-1 - Fast LDO Linear Regulator (Texas Instruments)
  • UC382-2 - Fast LDO Linear Regulator (Texas Instruments)
  • UC382-3 - Fast LDO Linear Regulator (Texas Instruments)
  • UC382-ADJ - Fast LDO Linear Regulator (Texas Instruments)
  • UC3823 - High Speed PWM Controller (Unitrode)
  • UC3823A - HIGH-SPEED PWM CONTROLLER (Texas Instruments)
  • UC3823B - HIGH-SPEED PWM CONTROLLER (Texas Instruments)
  • UC3824 - HIGH SPEED PWM CONTROLLER (Texas Instruments)
Other Datasheets by STANLEY ELECTRIC
  • UC3804X - Single Color Flush Mount Round Shape Type

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com U□38□3X Series Single Color φ3 Flush Mount Round Shape Type Features Package φ3 Round shape type, UB,UC,UG UY UR Product features : Water Clear epoxy : Pale Yellow Clear epoxy : Pale Red Clear epoxy Outer Dimension φ3 Round shape type Operation temperature range. Storage Temperature :-40℃～100℃ Operating Temperature :-40℃～85℃ Lead–free soldering compatible RoHS compliant Dominant wavelength Blue Blue Green Green Yellow Red : : : : : 470nm (UB) 505nm (UC) 525nm (UG) 590nm (UY) 626nm (UR) Half Intensity Angle UB,UC,UG UY,UR : 26 deg. : 22 deg.
