1SMB5927A - 3W SURFACE MOUNTSILICON ZENER DIODES

Product Overview

Part number	1SMB5927A
Manufacturer	STAR SEA
File Size	647.51 KB
Description	3W SURFACE MOUNTSILICON ZENER DIODES
Datasheet	1SMB5927A Datasheet
Note	This datasheet PDF includes multiple part numbers: 1SMB5927A, 1SMB5913A. Please refer to the document for exact specifications by model.

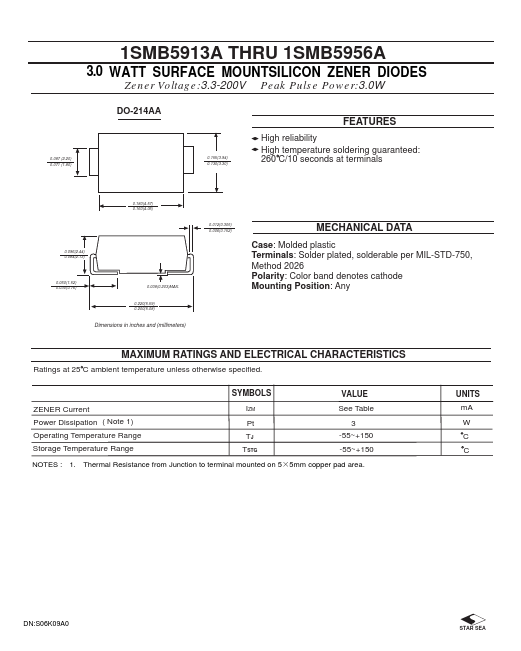

Additional preview pages of the 1SMB5927A datasheet.

High reliability High temperature soldering guaranteed: 260 C/10 seconds at terminals 0.180(4.57) 0.160(4.06) 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.220(5.59) 0.200(5.08) Dimensions in inches and (millimeters) 0.012(0.305) 0.006(0.152).
