DG140A12TCFS IGBT

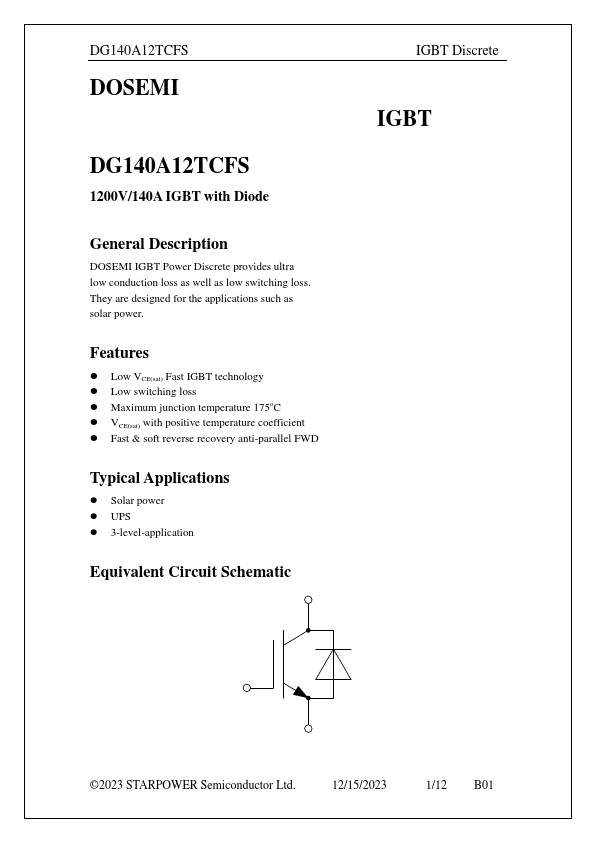

📥 Download Datasheet  Datasheet Preview Page 1

Description

DG140A12TCFS DOSEMI DG140A12TCFS 1200V/140A IGBT with Diode General .
DOSEMI IGBT Power Discrete provides ultra low conduction loss as well as low switching loss.

📥 Download Datasheet

Preview of DG140A12TCFS PDF

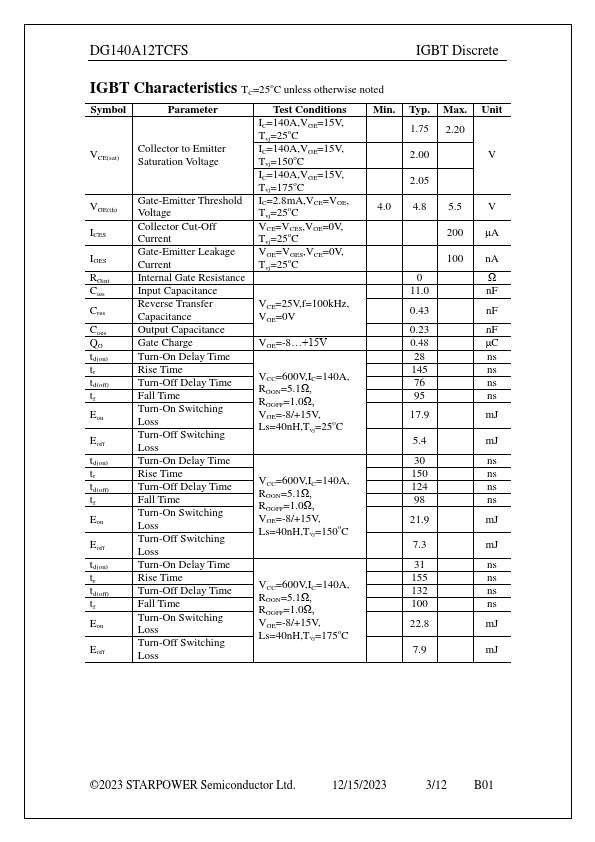

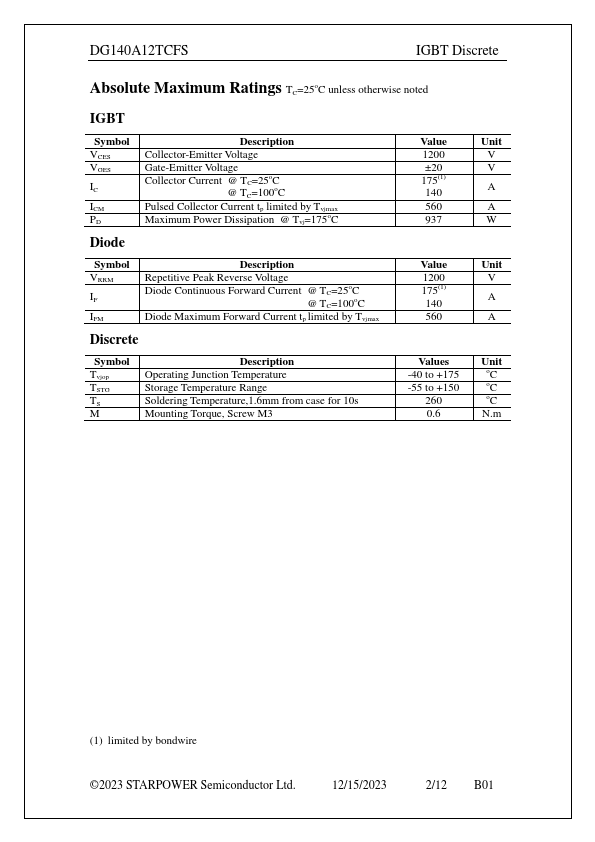

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DG140A12TCFS
Manufacturer
STARPOWER
File Size
559.84 KB
Datasheet
DG140A12TCFS-STARPOWER.pdf
Description
IGBT

Features

* Low VCE(sat) Fast IGBT technology
* Low switching loss
* Maximum junction temperature 175oC
* VCE(sat) with positive temperature coefficient
