DG50X07T2 IGBT

STARPOWER

Description

DG50X07T2 DOSEMI DG50X07T2 650V/50A IGBT with Diode General .
DOSEMI IGBT Power Discrete provides ultra low conduction loss as well as low switching loss.

📥 Download Datasheet

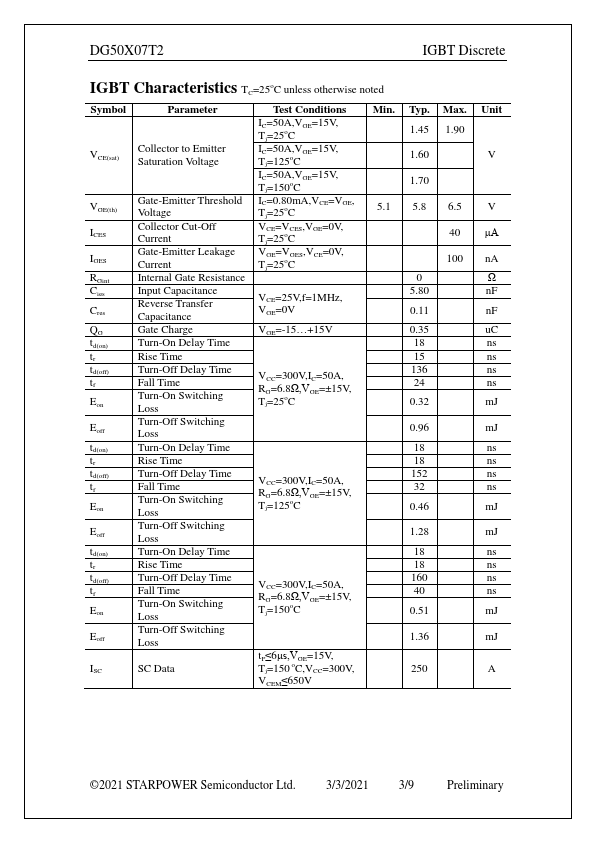

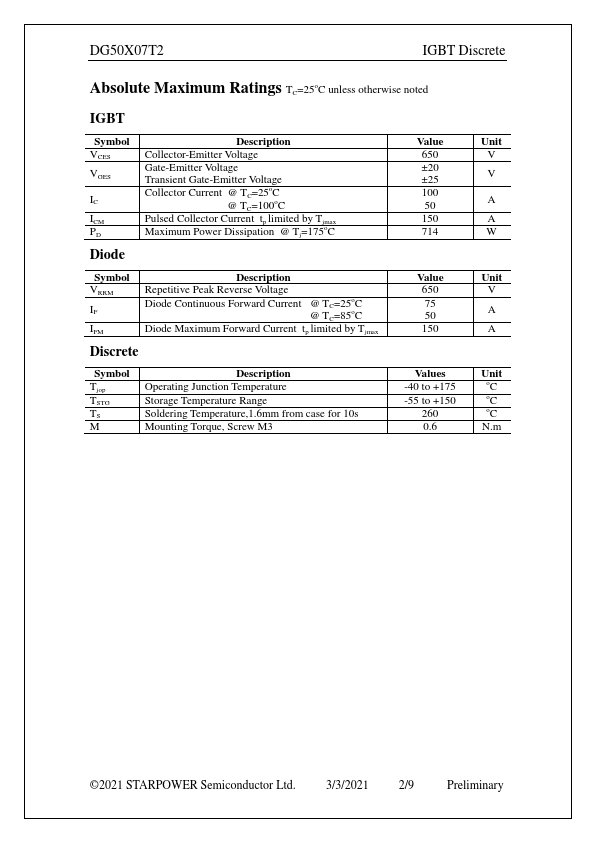

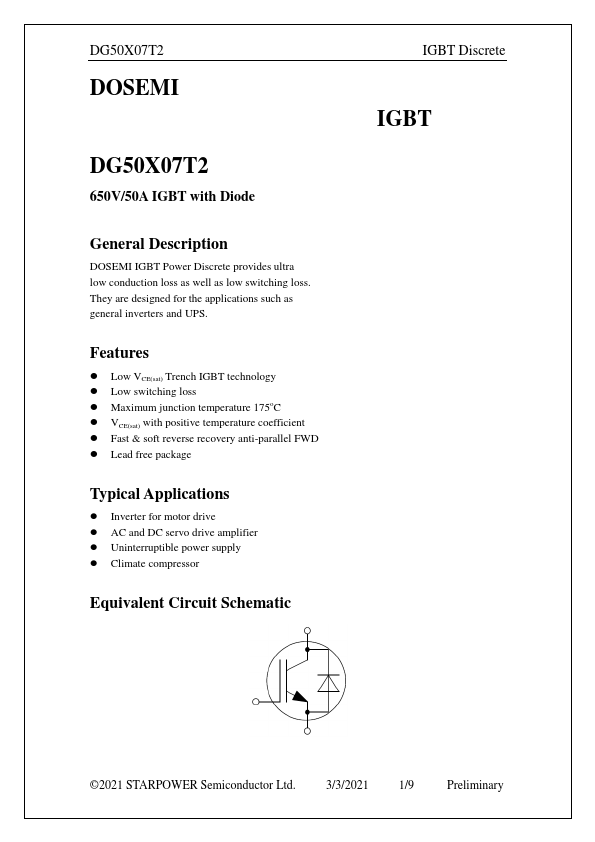

DG50X07T2 Datasheet Preview — Preview of DG50X07T2 PDF

Datasheet Specifications

Part number: DG50X07T2
Manufacturer: STARPOWER
File Size: 577.04 KB
Datasheet: DG50X07T2-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching loss
* Maximum junction temperature 175oC
* VCE(sat) with positive temperature coefficient
* Fast & soft reverse recovery anti-parallel FWD
