GD1000HFA120C6S_B39 - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as hybrid and electric vehicle.

Features

  • Low VCE(sat) Trench IGBT technology.
  • Short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper pinfin baseplate using AMB technology Typical.

📥 Download Datasheet

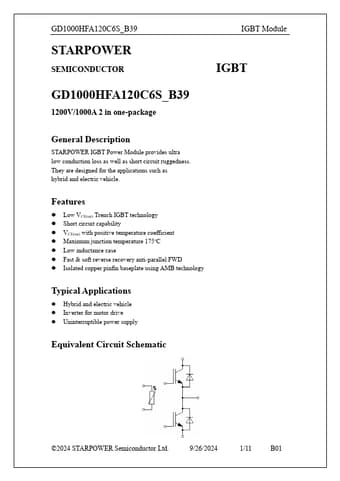

Datasheet preview – GD1000HFA120C6S_B39

Datasheet Details

Part number GD1000HFA120C6S_B39
Manufacturer STARPOWER
File Size 582.17 KB
Description IGBT
Datasheet download datasheet GD1000HFA120C6S_B39 Datasheet
Additional preview pages of the GD1000HFA120C6S_B39 datasheet.

📁 Similar Datasheet

  • GD103SD - SWITCHING DIODE (GTM)
  • GD10HF60KD - short-circuit rugged IGBT (STMicroelectronics)
  • GD10MPS12A - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS12E - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS12H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS17H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10NC60HD - very fast IGBT (STMicroelectronics)
  • GD10NC60KD - short-circuit rugged IGBT (STMicroelectronics)
  • GD10NC60S - fast IGBT (STMicroelectronics)
  • GD14NC60K - IGBT (STMicroelectronics)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD1000HFA120C6S_B39 STARPOWER SEMICONDUCTOR GD1000HFA120C6S_B39 1200V/1000A 2 in one-package IGBT Module IGBT General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as hybrid and electric vehicle. Features  Low VCE(sat) Trench IGBT technology  Short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper pinfin baseplate using AMB technology Typical Applications  Hybrid and electric vehicle  Inverter for motor drive  Uninterruptible power supply Equivalent Circuit Schematic ©2024 STARPOWER Semiconductor Ltd.
