GD100HFX170C1S IGBT

STARPOWER

Description

GD100HFX170C1S STARPOWER SEMICONDUCTOR GD100HFX170C1S 1700V/100A 2 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

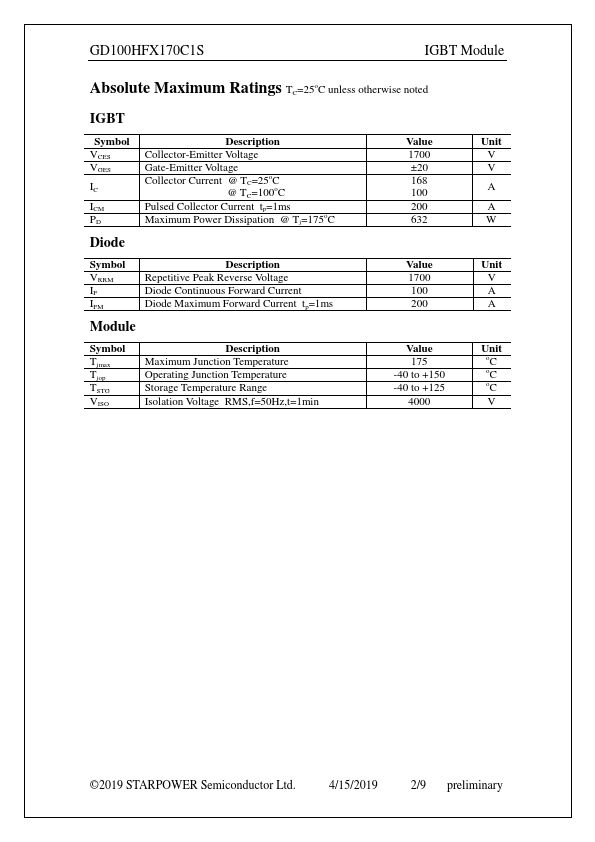

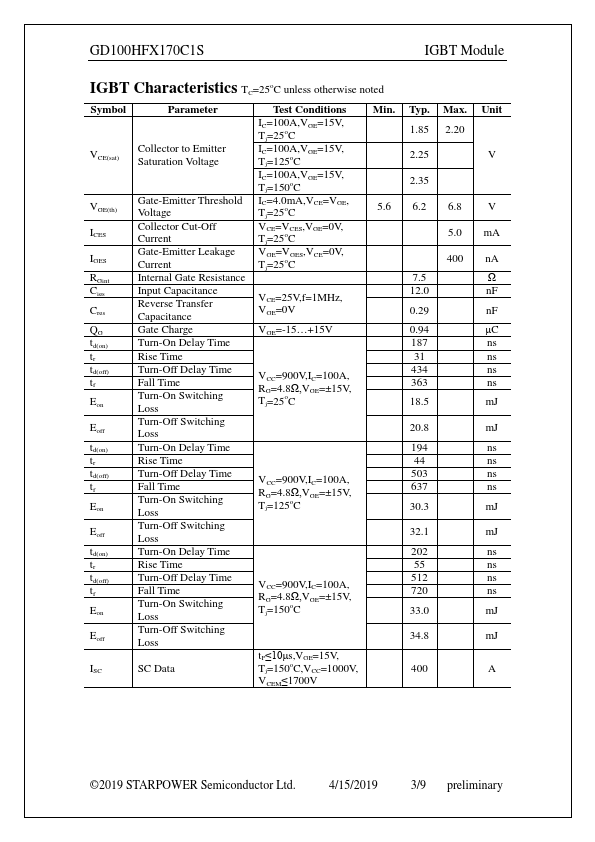

GD100HFX170C1S Datasheet Preview — Preview of GD100HFX170C1S PDF

Datasheet Specifications

Part number: GD100HFX170C1S
Manufacturer: STARPOWER
File Size: 167.69 KB
Datasheet: GD100HFX170C1S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
