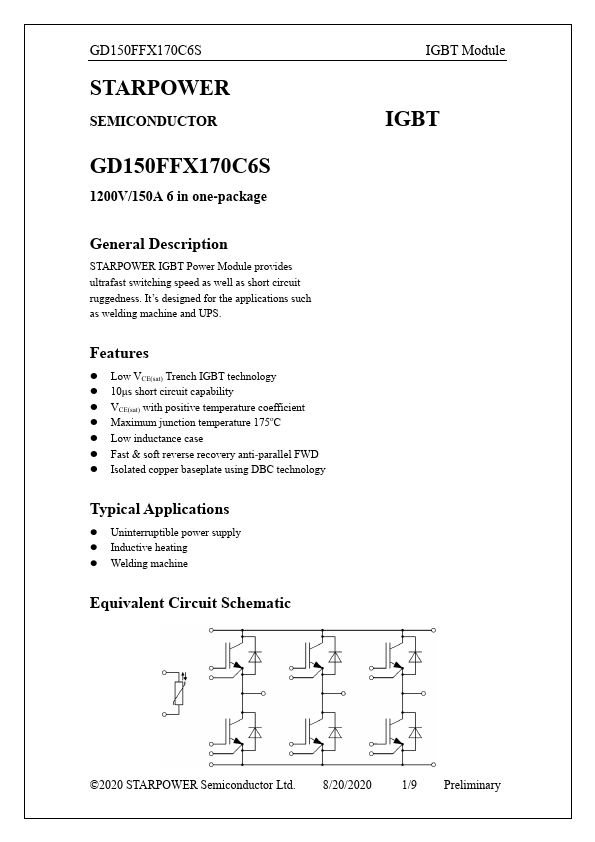

GD150FFX170C6S
Description
STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness. It’s designed for the applications such as welding machine and UPS.
Features
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175o C
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Uninterruptible power supply
- Inductive heating
- Welding machine
Equivalent Circuit Schematic
IGBT Module
IGBT
©2020 STARPOWER Semiconductor Ltd. 8/20/2020 1/9 Preliminary
IGBT Module

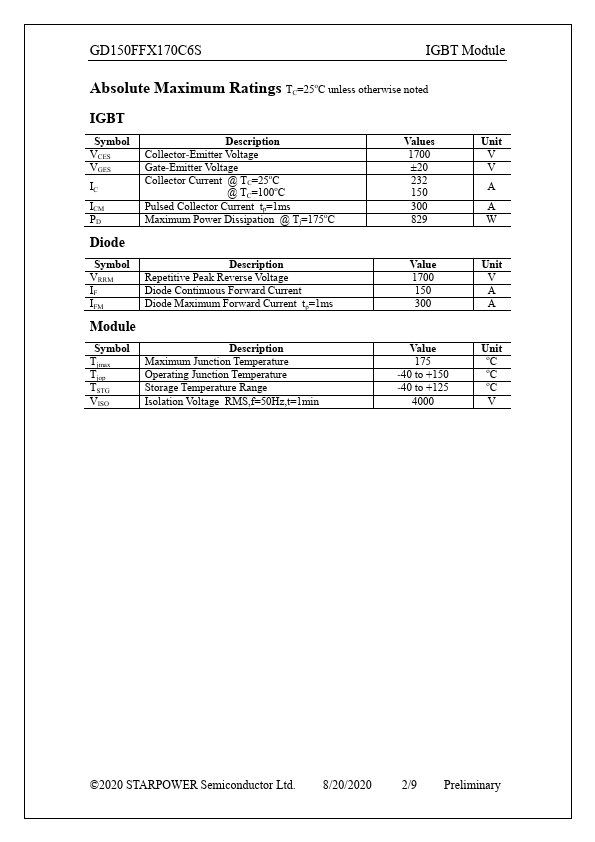

Absolute Maximum Ratings TC=25o C unless otherwise noted
IGBT
Symbol VCES VGES
ICM PD
Description
Collector-Emitter Voltage
Gate-Emitter Voltage Collector Current @ TC=25o C
@ TC=100o C
Pulsed Collector Current tp=1ms Maximum Power Dissipation @ Tj=175o C
Diode
Symbol VRRM IF IFM
Description
Repetiti...
