GD150GTY120C6S - IGBT

STARPOWER

📥 Download Datasheet

GD150GTY120C6S Datasheet Preview — Preview of GD150GTY120C6S PDF

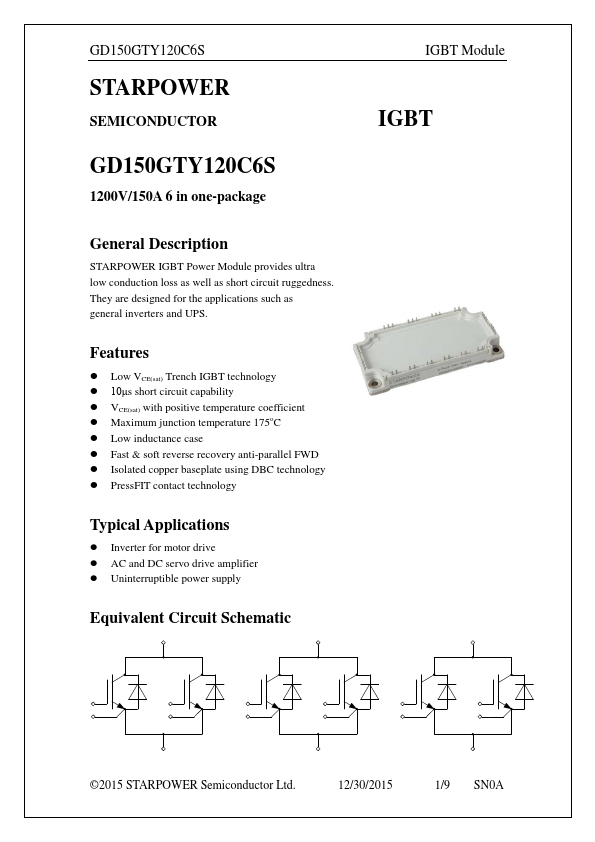

datasheet Preview Page 2

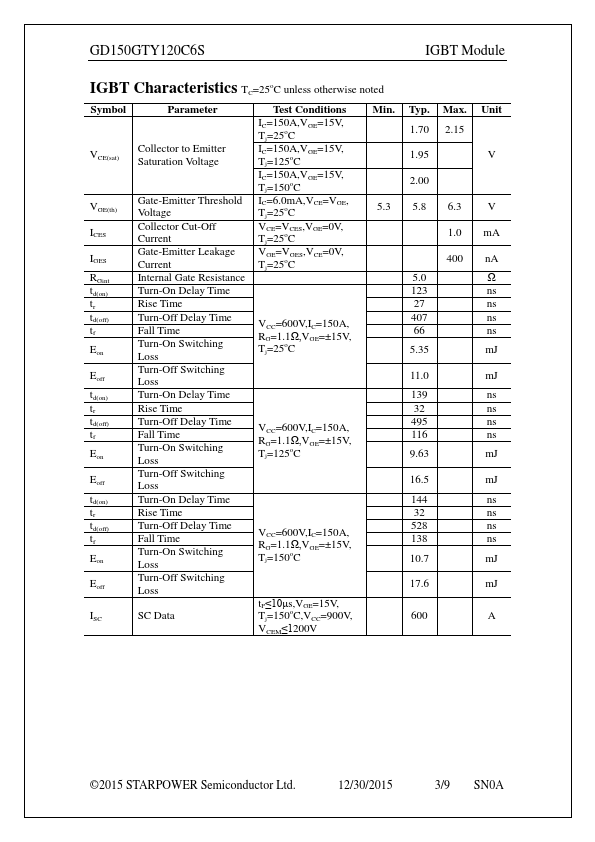

datasheet Preview Page 3

Datasheet Details

Part number: GD150GTY120C6S
Manufacturer: STARPOWER
File Size: 189.63 KB
Datasheet: GD150GTY120C6S-STARPOWER.pdf
Description: IGBT

GD150GTY120C6S Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
