GD150HFY120C1S IGBT

STARPOWER

Description

GD150HFY120C1S STARPOWER SEMICONDUCTOR GD150HFY120C1S 1200V/150A 2 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

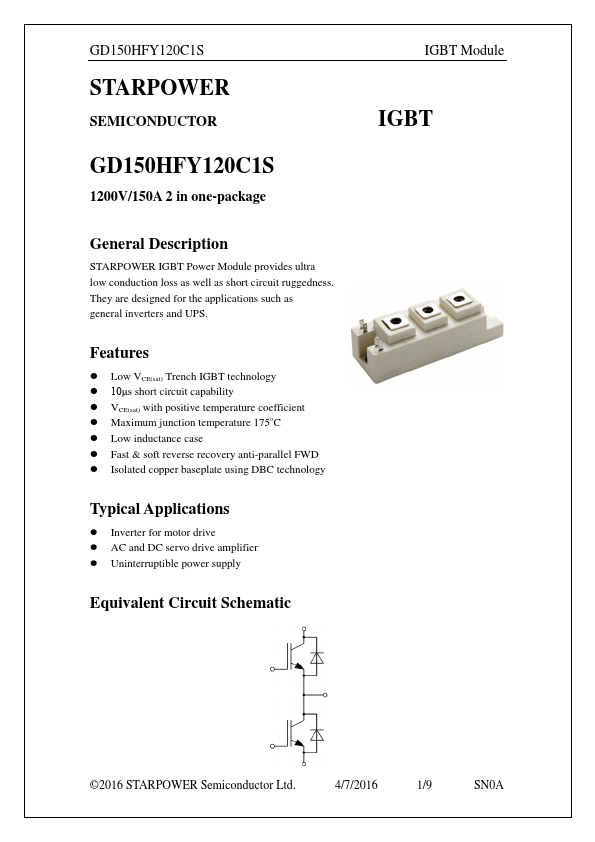

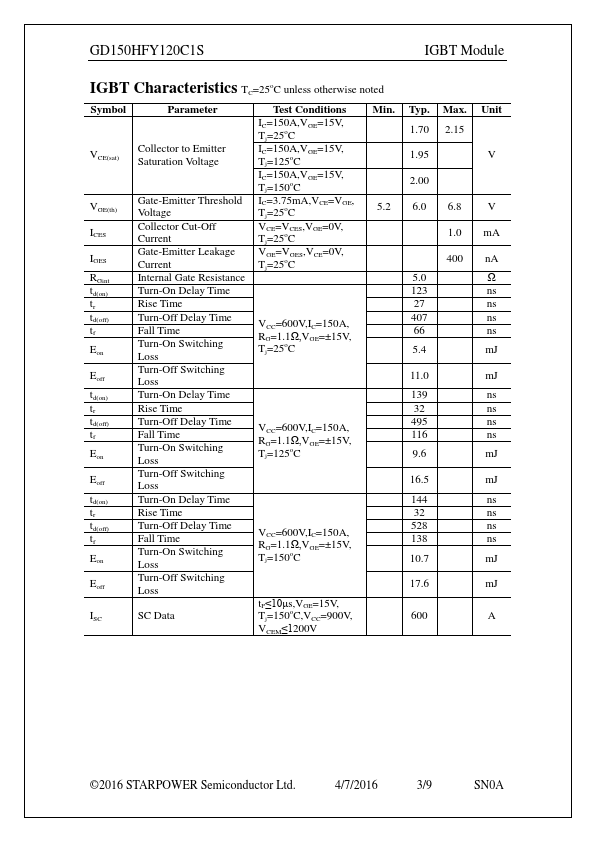

GD150HFY120C1S Datasheet Preview — Preview of GD150HFY120C1S PDF

Datasheet Specifications

Part number: GD150HFY120C1S
Manufacturer: STARPOWER
File Size: 201.09 KB
Datasheet: GD150HFY120C1S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
