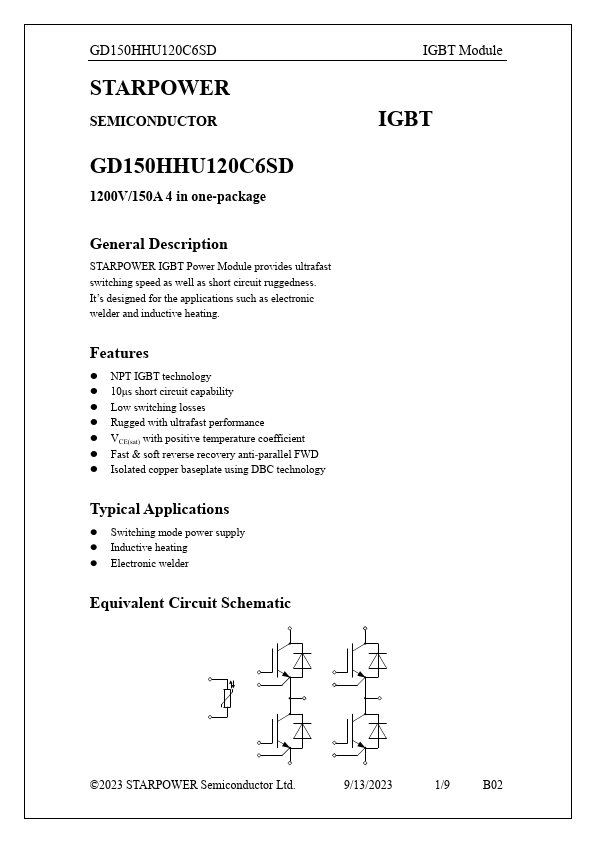

GD150HHU120C6SD
Description
STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness. It’s designed for the applications such as electronic welder and inductive heating.
Features
- NPT IGBT technology
- 10μs short circuit capability
- Low switching losses
- Rugged with ultrafast performance
- VCE(sat) with positive temperature coefficient
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Switching mode power supply
- Inductive heating
- Electronic welder
Equivalent Circuit Schematic
IGBT Module
IGBT
©2023 STARPOWER Semiconductor Ltd.
9/13/2023
1/9
B02
IGBT Module

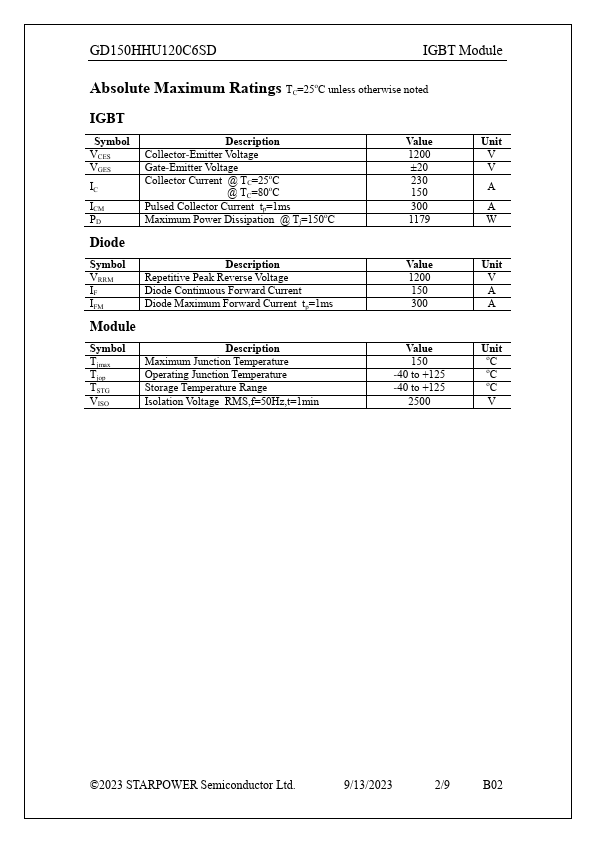

Absolute Maximum Ratings TC=25o C unless otherwise noted
IGBT
Symbol VCES VGES
ICM PD
Description
Collector-Emitter Voltage
Gate-Emitter Voltage Collector Current @ TC=25o C
@ TC=80o C
Pulsed Collector Current tp=1ms Maximum Power Dissipation @ Tj=150o C
Diode
Symbol VRRM IF IFM
Description

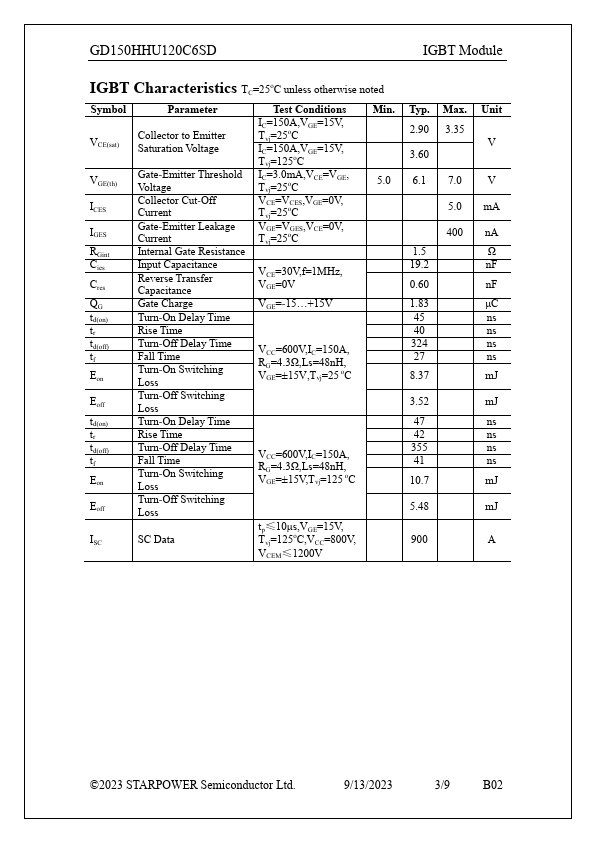

Repetitive...
