GD200CLX65C2S IGBT

📥 Download Datasheet  Datasheet Preview Page 1

Description

GD200CLX65C2S STARPOWER SEMICONDUCTOR GD200CLX65C2S 650V/200A chopper in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

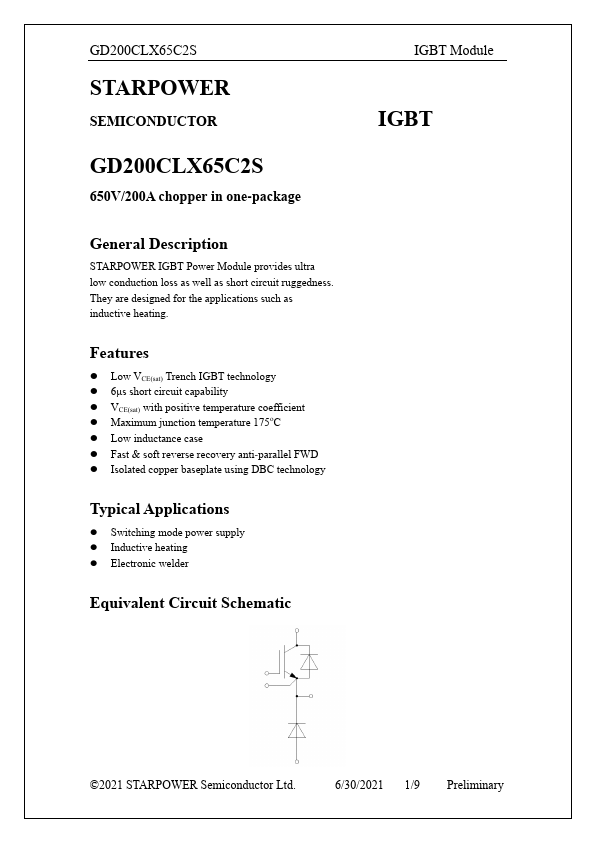

Preview of GD200CLX65C2S PDF

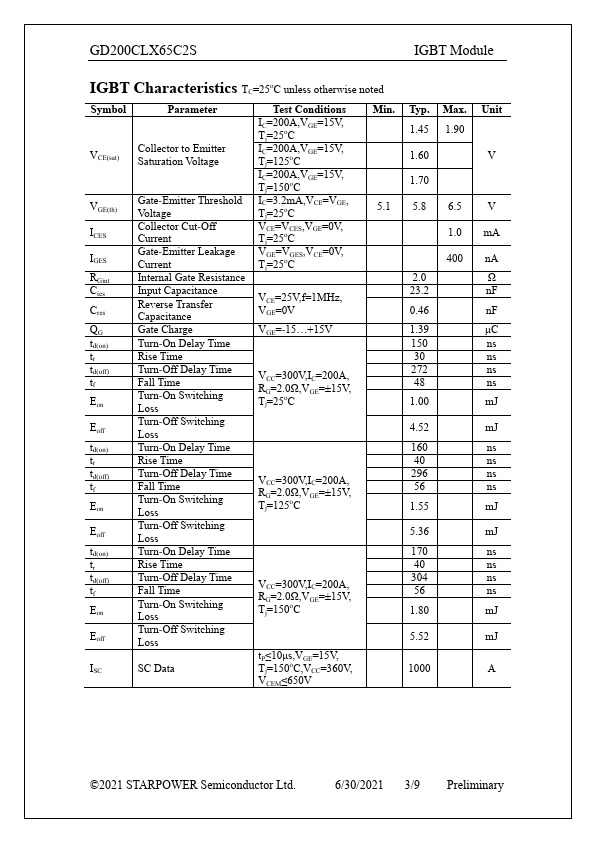

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GD200CLX65C2S
Manufacturer
STARPOWER
File Size
609.46 KB
Datasheet
GD200CLX65C2S-STARPOWER.pdf
Description
IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technolo
