GD25FSA120L2S IGBT

STARPOWER

Description

GD25FSA120L2S STARPOWER SEMICONDUCTOR GD25FSA120L2S 1200V/25A 6 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

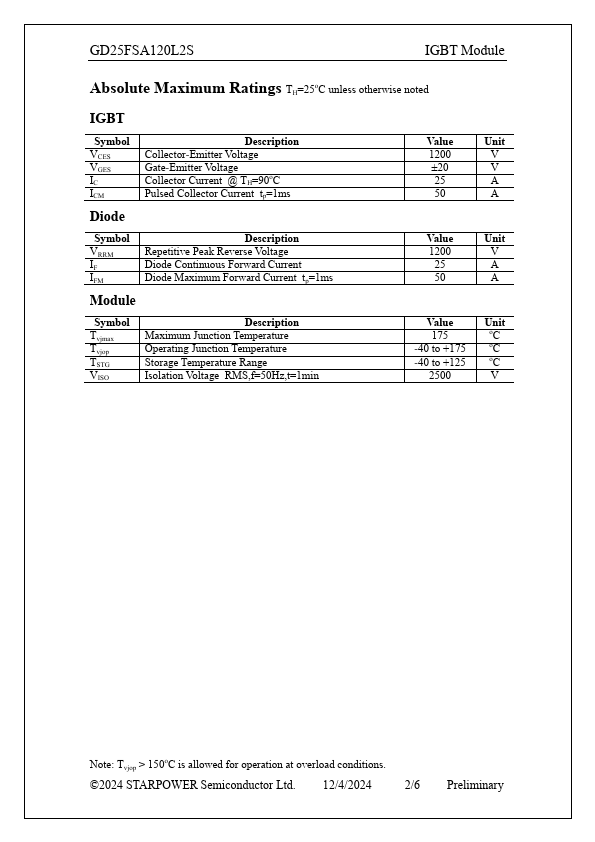

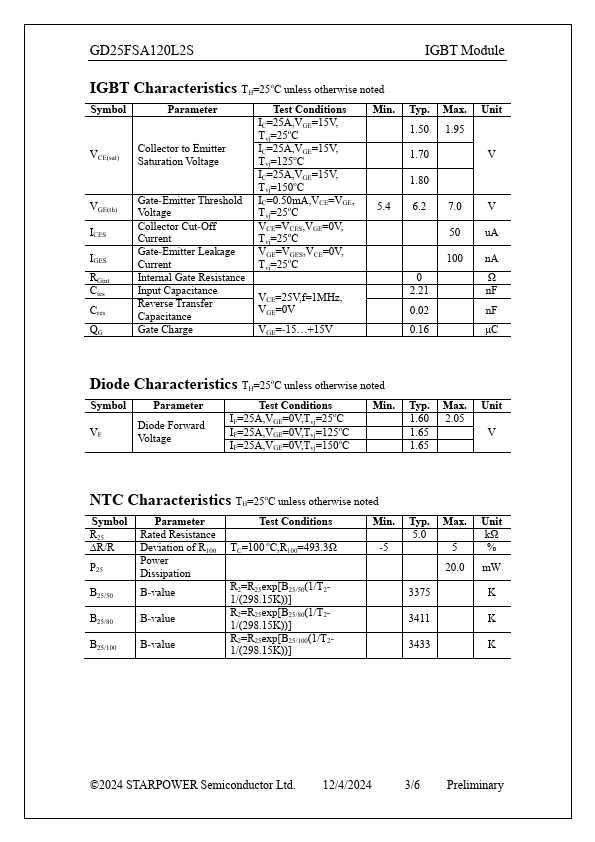

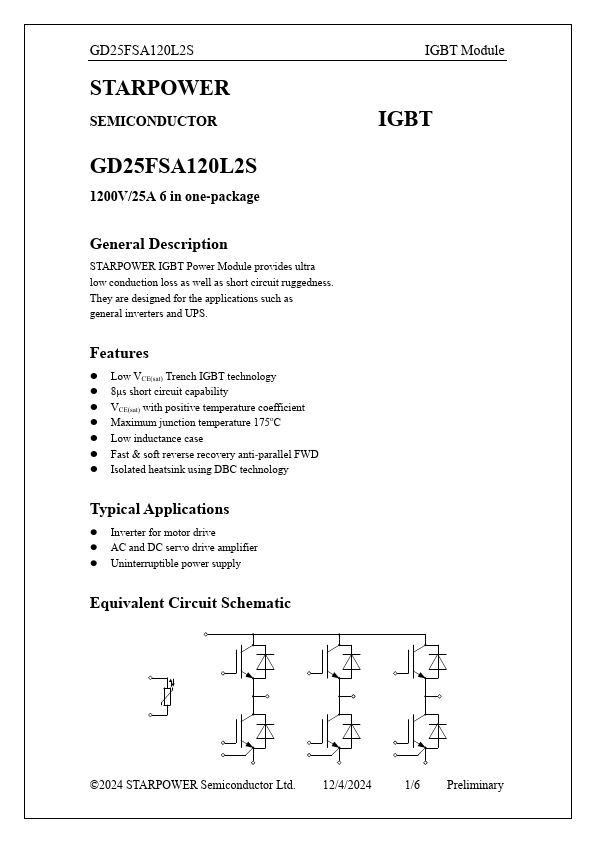

GD25FSA120L2S Datasheet Preview — Preview of GD25FSA120L2S PDF

Datasheet Specifications

Part number: GD25FSA120L2S
Manufacturer: STARPOWER
File Size: 442.28 KB
Datasheet: GD25FSA120L2S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 8μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typic
