GD260HTA120P7H - IGBT

STARPOWER

📥 Download Datasheet

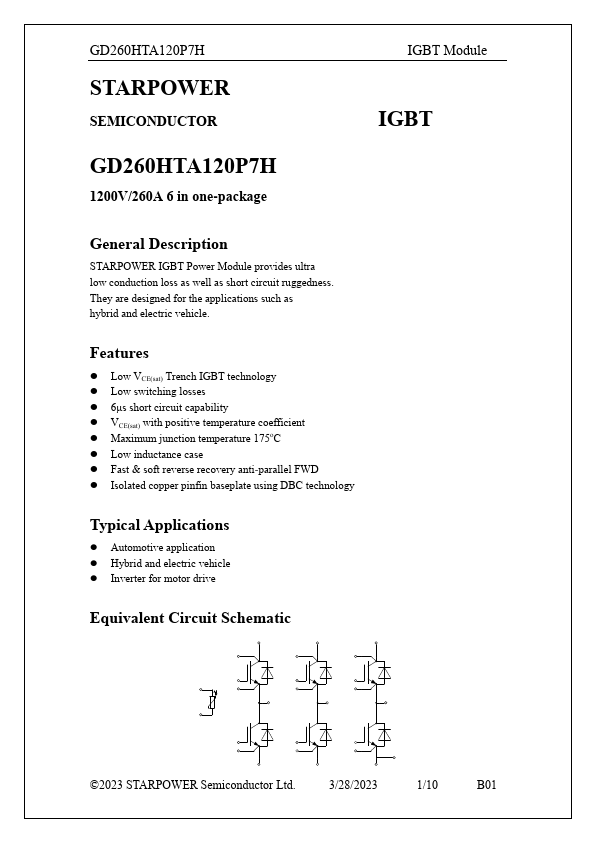

GD260HTA120P7H Datasheet Preview — Preview of GD260HTA120P7H PDF

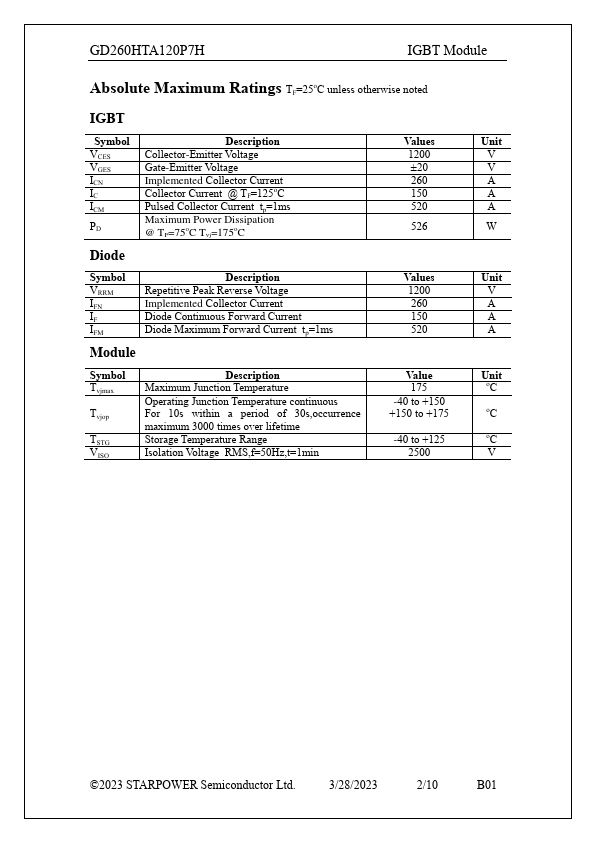

datasheet Preview Page 2

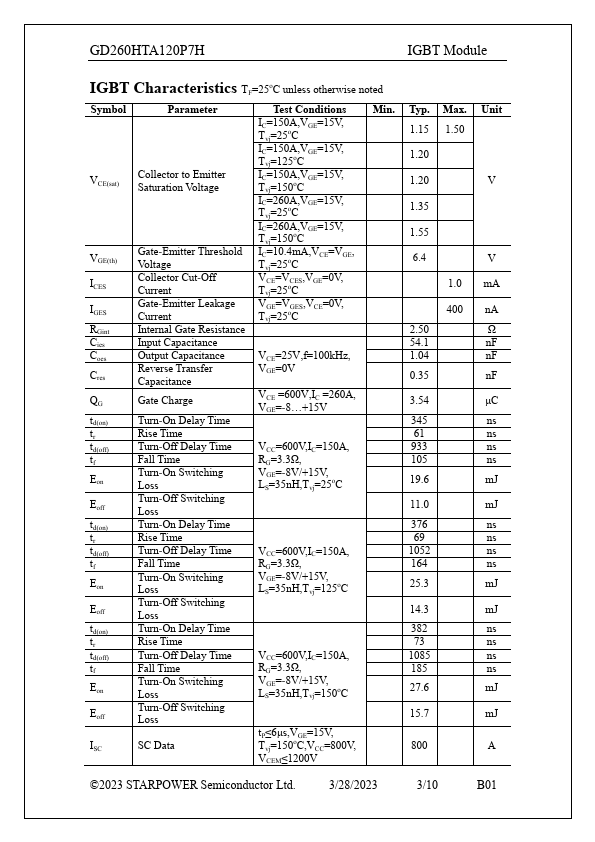

datasheet Preview Page 3

Datasheet Details

Part number	GD260HTA120P7H
Manufacturer	STARPOWER
File Size	754.12 KB
Description	IGBT
Datasheet	GD260HTA120P7H-STARPOWER.pdf

GD260HTA120P7H Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Low switching losses.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper pinfin baseplate using DBC technology Typical.
