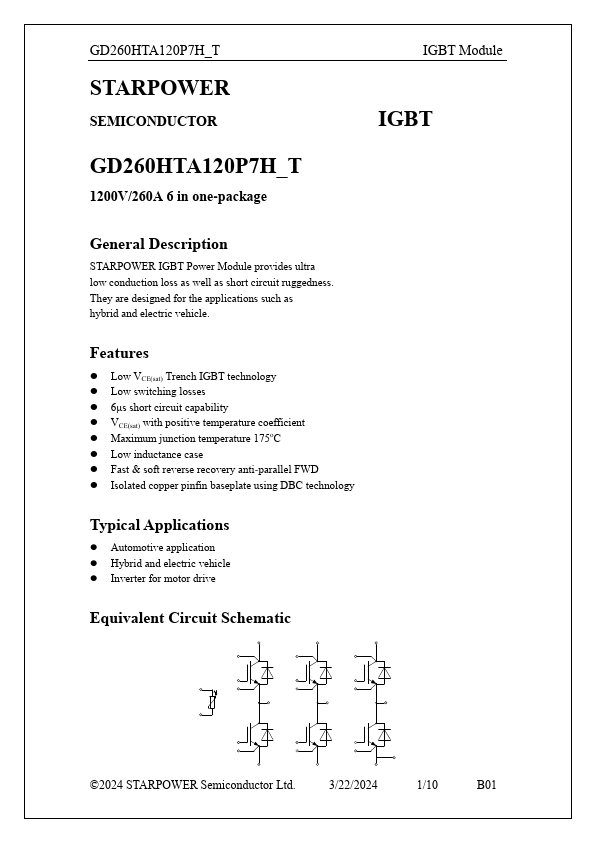

GD260HTA120P7H_T
Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as hybrid and electric vehicle.
Features
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175o C
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper pinfin baseplate using DBC technology
Typical Applications
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive
Equivalent Circuit Schematic
©2024 STARPOWER Semiconductor Ltd.
3/22/2024
1/10
B01
IGBT Module

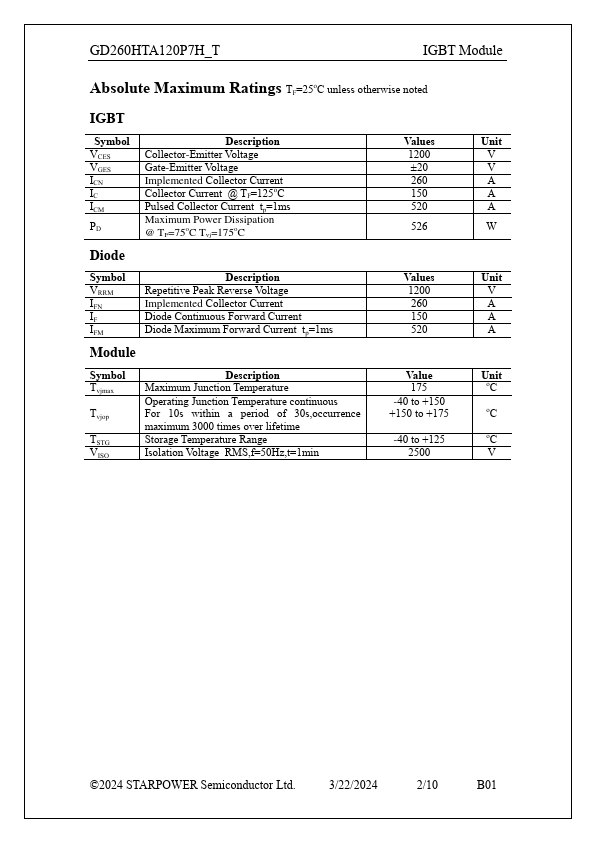

Absolute Maximum Ratings TF=25o C unless otherwise noted
IGBT
Symbol VCES VGES ICN IC ICM
Description
Collector-Emitter Voltage
Gate-Emitter Voltage
Implemented Collector Current Collector Current @ TF=125o C Pulsed Collector Current tp=1ms Maximum Power Dissipation @...
