Description

GD260HTA120P7H_T1 STARPOWER SEMICONDUCTOR GD260HTA120P7H_T1 1200V/260A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

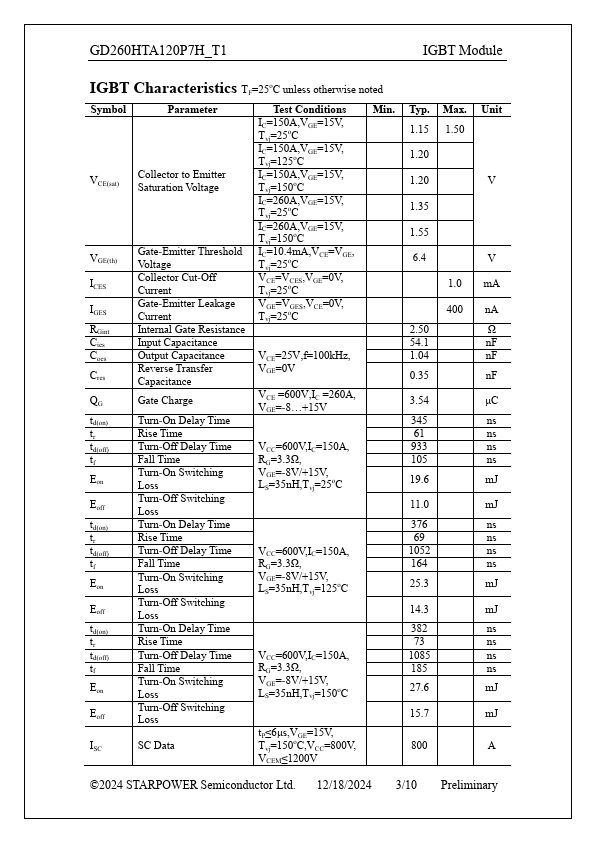

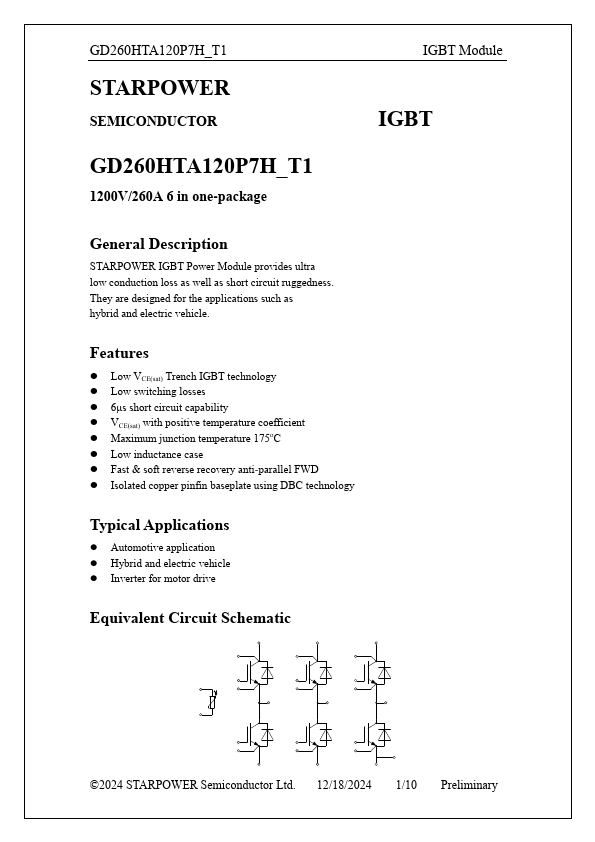

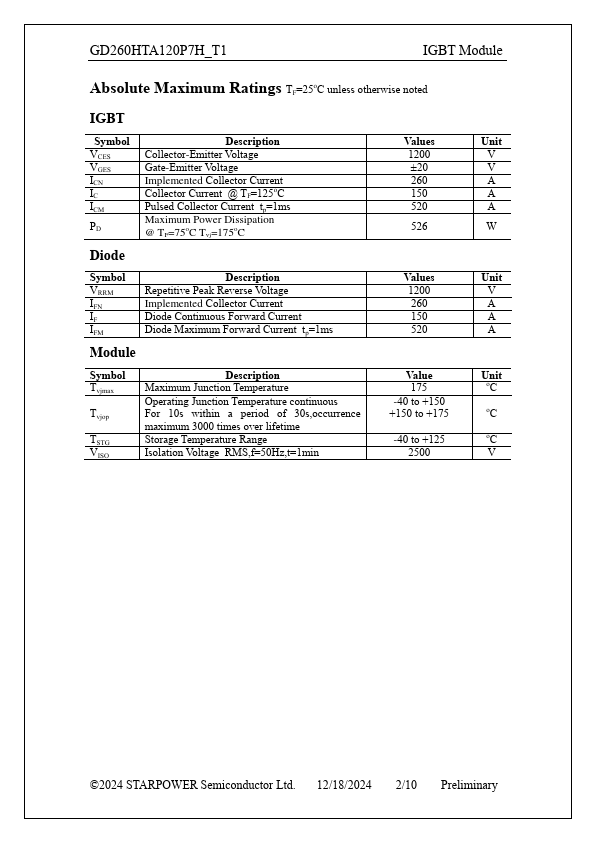

GD260HTA120P7H_T1 Datasheet Preview — Preview of GD260HTA120P7H_T1 PDF

Datasheet Specifications

Part number: GD260HTA120P7H_T1
Manufacturer: STARPOWER
File Size: 738.70 KB
Datasheet: GD260HTA120P7H_T1-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
